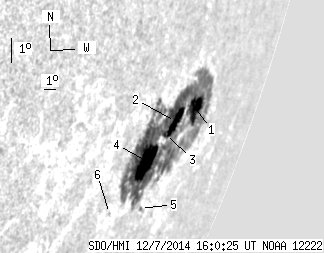

SDO HMI 2014-12-07 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.64 | 438.48 | 130.29 | 787.32 | -19.63 | 85.39 | 72.89 | 249.51 | 0.9620 | 389.4 | 162.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-07 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.34 | 436.18 | 44.55 | 783.45 | -18.79 | 87.24 | 74.75 | 250.56 | 0.9697 | 226.1 | 161.5 | |
| 15.43 | -1.00 | 27.77 | -1.00 | -19.23 | 85.48 | 72.98 | 249.94 | 0.9624 | 354.2 | 999999 | |
| 1.28 | -1.00 | 2.21 | -1.00 | -19.63 | 84.87 | 72.38 | 249.46 | 0.9599 | 565.9 | 999999 | |
| 33.25 | -1.00 | 55.15 | -1.00 | -20.48 | 83.88 | 71.38 | 248.47 | 0.9557 | 530.3 | 999999 | |
| 0.34 | 1.28 | 0.61 | 2.29 | -21.98 | 85.06 | 72.56 | 247.05 | 0.9620 | 546.5 | 456.5 | |
| 0.00 | 1.02 | 0.00 | 1.58 | -22.13 | 82.14 | 69.65 | 246.53 | 0.9483 | 391.0 | 370.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
