SDO HMI 2014-12-07 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.85 | 0.00 | 6.12 | 15.03 | 13.48 | 1.54 | 348.52 | 0.2794 | -481.4 | -388.2 | |
|
previous
or next observation for the same group /

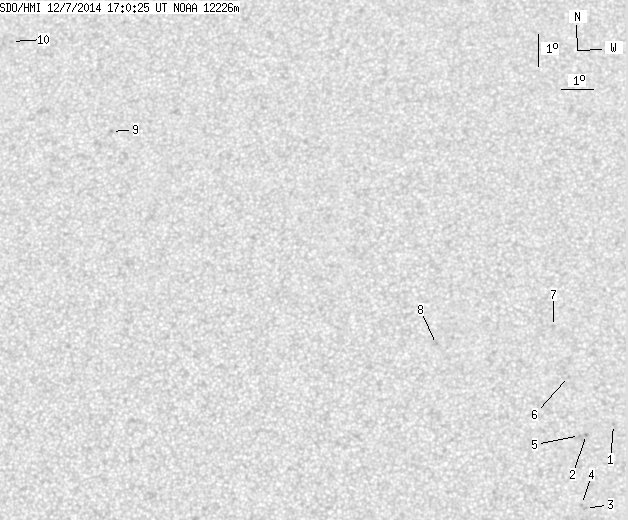

back to the solar disc SDO HMI 2014-12-07 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.48 | 12.63 | 18.28 | 6.34 | 333.66 | 0.2438 | -765.0 | -582.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.33 | 17.45 | 5.51 | 336.17 | 0.2332 | -936.0 | -793.0 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 10.10 | 17.38 | 5.43 | 331.85 | 0.1985 | -886.0 | -712.3 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 10.22 | 17.26 | 5.31 | 332.66 | 0.1994 | -823.0 | -689.5 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 12.30 | 17.24 | 5.30 | 336.94 | 0.2313 | -832.0 | -704.3 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 14.09 | 16.94 | 5.00 | 340.76 | 0.2578 | -706.0 | -506.0 | |
| 0.00 | 1.79 | 0.00 | 0.92 | 15.61 | 16.52 | 4.58 | 344.00 | 0.2801 | -767.0 | -647.1 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 15.07 | 12.93 | 0.98 | 356.34 | 0.2605 | -633.0 | -529.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 21.71 | 2.60 | -9.34 | 22.23 | 0.4002 | 825.0 | 630.9 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 24.61 | 359.09 | -12.85 | 25.97 | 0.4639 | 709.0 | 515.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
