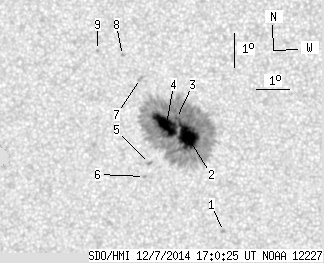

SDO HMI 2014-12-07 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.63 | 369.30 | 31.15 | 186.62 | -3.67 | 1.15 | -10.80 | 109.25 | 0.1990 | 1203.2 | 392.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-07 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.82 | -6.65 | 2.49 | -9.45 | 125.65 | 0.2017 | -993.0 | -717.0 | |
| 33.33 | 360.02 | 16.83 | 181.90 | -3.84 | 1.45 | -10.49 | 110.54 | 0.1949 | 1461.9 | 401.6 | |
| 1.02 | -2.00 | 0.52 | -2.00 | -3.30 | 1.13 | -10.81 | 107.42 | 0.1972 | 993.0 | 999999 | |
| 27.28 | -2.00 | 13.80 | -2.00 | -3.48 | 0.83 | -11.12 | 107.82 | 0.2031 | 1431.3 | 999999 | |
| 0.00 | 1.79 | 0.00 | 0.91 | -4.64 | 0.30 | -11.65 | 112.16 | 0.2183 | 827.0 | 603.1 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -5.02 | 0.14 | -11.81 | 113.50 | 0.2233 | 723.0 | 594.6 | |
| 0.00 | 2.47 | 0.00 | 1.25 | -2.12 | 0.06 | -11.89 | 100.50 | 0.2103 | 917.0 | 672.5 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -1.44 | 359.52 | -12.42 | 96.97 | 0.2177 | -716.0 | -559.6 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -1.29 | 358.76 | -13.18 | 95.94 | 0.2302 | -929.0 | -758.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
