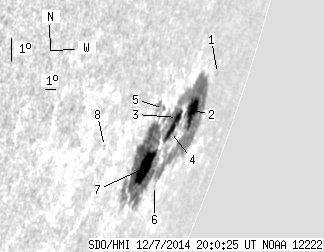

SDO HMI 2014-12-07 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.48 | 349.34 | 128.55 | 719.19 | -19.56 | 85.43 | 75.15 | 249.80 | 0.9713 | 280.8 | 156.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-07 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 4.85 | -17.65 | 89.25 | 78.97 | 252.03 | 0.9841 | -97.0 | -95.1 | |
| 20.63 | 335.61 | 47.89 | 693.27 | -18.80 | 87.24 | 76.95 | 250.73 | 0.9779 | 114.8 | 154.3 | |
| 6.56 | -2.00 | 13.61 | -2.00 | -19.02 | 85.55 | 75.26 | 250.37 | 0.9718 | 351.4 | 999999 | |
| 8.52 | -2.00 | 17.26 | -2.00 | -19.45 | 85.26 | 74.98 | 249.90 | 0.9709 | 306.9 | 999999 | |
| 0.51 | 10.74 | 0.93 | 19.16 | -18.73 | 83.55 | 73.27 | 250.49 | 0.9634 | 378.5 | 309.6 | |
| 0.00 | 0.26 | 0.00 | 0.54 | -21.16 | 85.67 | 75.39 | 248.19 | 0.9731 | -36.0 | -92.7 | |
| 26.26 | -2.00 | 48.86 | -2.00 | -20.59 | 83.79 | 73.51 | 248.60 | 0.9653 | 434.6 | 999999 | |
| 0.00 | 0.94 | 0.00 | 1.37 | -19.91 | 79.01 | 68.73 | 248.74 | 0.9416 | -87.0 | -80.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
