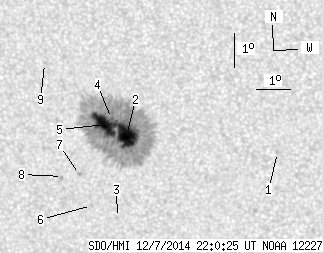

SDO HMI 2014-12-07 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.73 | 353.54 | 30.94 | 177.20 | -3.69 | 1.18 | -8.00 | 115.21 | 0.1542 | 1305.6 | 420.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-07 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.55 | -4.35 | 5.96 | -3.22 | 143.80 | 0.0953 | 929.0 | 745.4 | |
| 32.74 | 348.34 | 16.40 | 174.60 | -3.84 | 1.47 | -7.70 | 116.83 | 0.1506 | 1494.4 | 417.0 | |
| 0.00 | 1.02 | 0.00 | 0.51 | -6.27 | 1.17 | -8.01 | 128.44 | 0.1776 | 709.0 | 592.2 | |
| 0.26 | -2.00 | 0.13 | -2.00 | -3.34 | 1.03 | -8.15 | 112.60 | 0.1540 | 1102.0 | 999999 | |
| 28.73 | -2.00 | 14.41 | -2.00 | -3.51 | 0.85 | -8.33 | 113.20 | 0.1580 | 1411.6 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -5.91 | 0.40 | -8.78 | 124.33 | 0.1847 | 885.0 | 667.1 | |
| 0.00 | 1.28 | 0.00 | 0.64 | -4.99 | 0.05 | -9.13 | 119.04 | 0.1816 | 984.0 | 728.5 | |
| 0.00 | 0.60 | 0.00 | 0.30 | -5.05 | 359.54 | -9.64 | 118.02 | 0.1898 | 647.0 | 624.7 | |
| 0.00 | 0.34 | 0.00 | 0.17 | -1.71 | 359.04 | -10.14 | 99.84 | 0.1794 | -713.0 | -521.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
