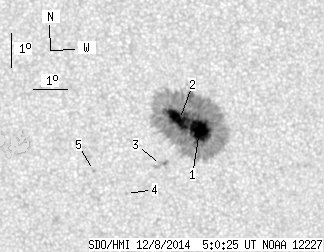

SDO HMI 2014-12-08 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.12 | 351.93 | 27.92 | 175.15 | -3.79 | 1.20 | -4.14 | 132.50 | 0.0982 | 1313.1 | 432.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-08 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.64 | 343.49 | 15.74 | 170.93 | -3.90 | 1.49 | -3.85 | 135.34 | 0.0957 | 1505.2 | 441.7 | |
| 24.48 | -1.00 | 12.18 | -1.00 | -3.58 | 0.90 | -4.44 | 128.78 | 0.0996 | 1483.3 | 999999 | |
| 0.00 | 6.48 | 0.00 | 3.23 | -4.91 | 0.32 | -5.01 | 134.39 | 0.1224 | 621.0 | 384.3 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -5.77 | 359.30 | -6.04 | 133.76 | 0.1455 | -949.0 | -739.5 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -5.08 | 358.32 | -7.01 | 125.98 | 0.1510 | -830.0 | -701.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
