SDO HMI 2014-12-08 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.25 | 0.00 | 2.69 | -15.20 | 39.56 | 35.31 | 245.02 | 0.6192 | 303.8 | 311.8 | |
|
previous
or next observation for the same group /

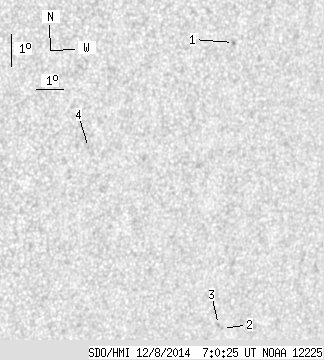

back to the solar disc SDO HMI 2014-12-08 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.85 | -10.51 | 40.11 | 35.86 | 252.46 | 0.6063 | 737.0 | 638.4 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -19.27 | 41.41 | 37.16 | 239.97 | 0.6610 | 569.0 | 508.8 | |
| 0.00 | 1.02 | 0.00 | 0.67 | -19.14 | 41.22 | 36.97 | 240.04 | 0.6582 | 614.0 | 573.7 | |
| 0.00 | 1.02 | 0.00 | 0.61 | -13.68 | 35.29 | 31.04 | 244.77 | 0.5560 | -705.0 | -613.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
