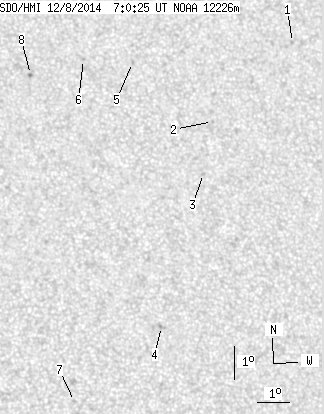

SDO HMI 2014-12-08 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.06 | 0.00 | 6.98 | 13.14 | 21.32 | 17.08 | 307.75 | 0.3707 | -763.1 | -618.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-08 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.67 | 17.51 | 26.48 | 22.23 | 309.86 | 0.4721 | -725.0 | -605.1 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 15.08 | 23.57 | 19.32 | 309.20 | 0.4141 | -674.0 | -566.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 13.49 | 23.14 | 18.89 | 306.60 | 0.3939 | -754.0 | -600.6 | |
| 0.00 | 3.50 | 0.00 | 1.84 | 8.88 | 21.50 | 17.25 | 297.87 | 0.3330 | -844.0 | -650.2 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 16.89 | 21.16 | 16.91 | 316.28 | 0.4045 | -623.0 | -438.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 16.99 | 19.59 | 15.34 | 319.15 | 0.3886 | -788.0 | -596.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 6.65 | 18.71 | 14.47 | 295.12 | 0.2753 | -821.0 | -594.7 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 16.52 | 17.86 | 13.62 | 321.61 | 0.3651 | -876.0 | -848.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
