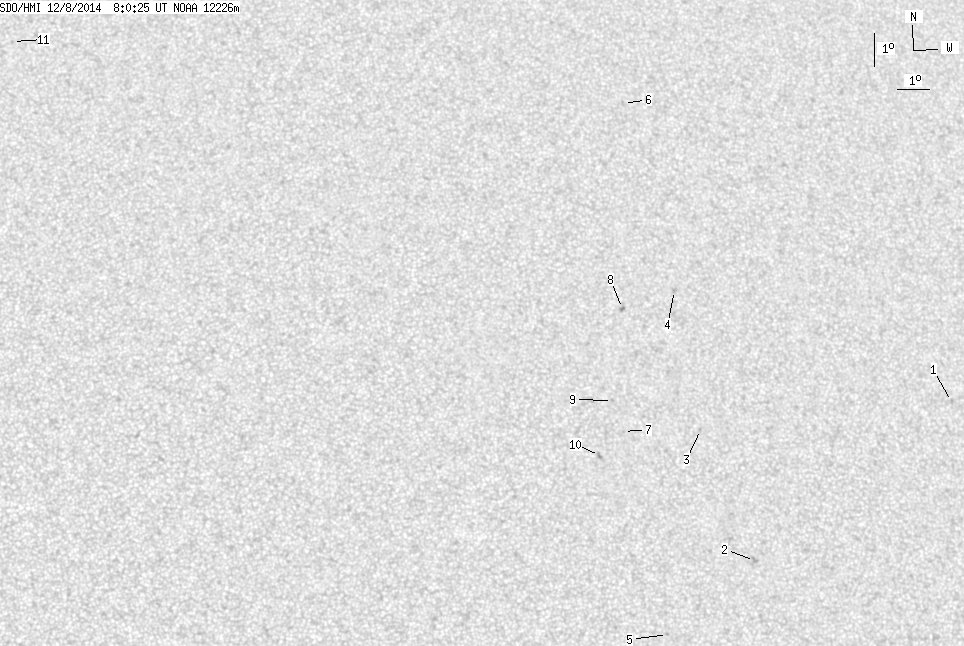

SDO HMI 2014-12-08 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.82 | 0.00 | 9.53 | 14.25 | 19.19 | 15.49 | 313.14 | 0.3726 | -592.3 | -556.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-08 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.96 | 0.00 | 1.10 | 13.64 | 28.27 | 24.57 | 300.32 | 0.4701 | -43.0 | -99.5 | |
| 0.00 | 3.16 | 0.00 | 1.66 | 8.85 | 21.52 | 17.82 | 297.06 | 0.3410 | -901.0 | -743.6 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 12.79 | 20.06 | 16.35 | 308.95 | 0.3547 | -759.0 | -616.6 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 17.04 | 19.56 | 15.86 | 318.34 | 0.3948 | -829.0 | -662.3 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 6.65 | 18.72 | 15.02 | 294.32 | 0.2838 | -837.0 | -598.0 | |
| 0.00 | 1.79 | 0.00 | 1.00 | 22.93 | 18.50 | 14.79 | 328.92 | 0.4574 | -616.0 | -462.6 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 12.73 | 17.64 | 13.94 | 313.25 | 0.3240 | -662.0 | -593.6 | |
| 0.00 | 2.13 | 0.00 | 1.14 | 16.49 | 17.86 | 14.15 | 320.49 | 0.3702 | -930.0 | -775.5 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 13.67 | 17.35 | 13.65 | 315.95 | 0.3312 | -788.0 | -652.7 | |
| 0.00 | 2.47 | 0.00 | 1.29 | 12.01 | 16.85 | 13.15 | 313.16 | 0.3064 | -865.0 | -726.3 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 24.95 | 358.66 | -5.05 | 10.69 | 0.4317 | 715.0 | 546.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
