SDO HMI 2014-12-08 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.31 | 216.31 | 142.22 | 814.50 | -19.66 | 84.80 | 81.65 | 250.15 | 0.9910 | 70.5 | 86.4 | |
|
previous
or next observation for the same group /

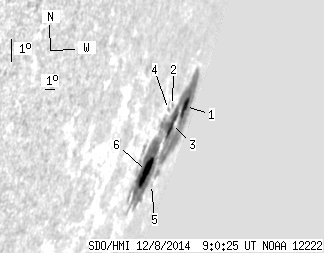

back to the solar disc SDO HMI 2014-12-08 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.10 | 211.87 | 37.99 | 799.53 | -18.81 | 86.81 | 83.65 | 251.09 | 0.9950 | -220.4 | 85.2 | |
| 0.00 | 1.28 | 0.00 | 4.07 | -18.77 | 83.67 | 80.51 | 250.99 | 0.9884 | 371.0 | 385.3 | |
| 17.14 | -1.00 | 61.46 | -1.00 | -19.34 | 84.73 | 81.58 | 250.47 | 0.9910 | 212.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 4.36 | -18.90 | 83.16 | 80.01 | 250.84 | 0.9872 | 429.0 | 405.1 | |
| 0.00 | 1.71 | 0.00 | 6.54 | -21.26 | 85.26 | 82.10 | 248.56 | 0.9923 | -136.0 | -189.3 | |
| 14.07 | -1.00 | 42.77 | -1.00 | -20.85 | 83.16 | 80.01 | 248.86 | 0.9875 | 114.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
