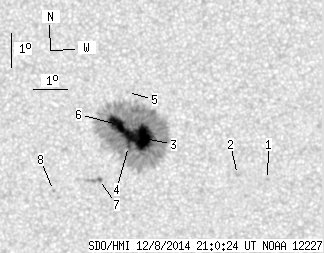

SDO HMI 2014-12-08 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.30 | 342.88 | 29.04 | 170.78 | -3.86 | 1.25 | 4.69 | 231.07 | 0.1054 | 1329.7 | 431.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-08 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.47 | -5.16 | 5.26 | 8.70 | 239.56 | 0.1756 | 850.0 | 674.5 | |
| 0.00 | 2.39 | 0.00 | 1.20 | -5.01 | 4.36 | 7.80 | 237.56 | 0.1610 | 889.0 | 700.4 | |
| 40.82 | 331.45 | 20.34 | 165.08 | -3.92 | 1.43 | 4.88 | 231.75 | 0.1085 | 1489.3 | 425.6 | |
| 0.26 | -3.00 | 0.13 | -3.00 | -4.18 | 1.10 | 4.55 | 227.91 | 0.1072 | 917.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.55 | -2.58 | 1.07 | 4.52 | 240.96 | 0.0904 | 675.0 | 503.6 | |
| 16.62 | -3.00 | 8.27 | -3.00 | -3.53 | 0.78 | 4.22 | 230.70 | 0.0954 | 1480.9 | 999999 | |
| 0.60 | 5.88 | 0.30 | 2.93 | -5.16 | 0.25 | 3.70 | 215.96 | 0.1098 | 1138.0 | 786.1 | |
| 0.00 | 1.11 | 0.00 | 0.55 | -5.48 | 358.88 | 2.33 | 203.28 | 0.1029 | -878.0 | -747.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
