SDO HMI 2014-12-09 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.39 | 339.72 | 27.19 | 169.86 | -3.87 | 1.23 | 6.89 | 241.27 | 0.1371 | 1217.3 | 427.2 | |
|
previous
or next observation for the same group /

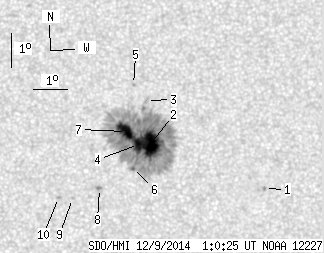

back to the solar disc SDO HMI 2014-12-09 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.78 | -5.26 | 4.95 | 10.60 | 243.92 | 0.2049 | 843.0 | 649.6 | |
| 29.50 | 329.75 | 14.76 | 164.87 | -3.92 | 1.51 | 7.17 | 241.92 | 0.1417 | 1454.4 | 432.4 | |
| 0.00 | 2.90 | 0.00 | 1.45 | -2.65 | 1.39 | 7.04 | 250.13 | 0.1308 | 229.0 | 242.5 | |
| 9.55 | -2.00 | 4.77 | -2.00 | -3.95 | 1.16 | 6.81 | 240.50 | 0.1365 | 1442.8 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.55 | -2.18 | 1.00 | 6.65 | 252.72 | 0.1218 | 655.0 | 556.8 | |
| 0.68 | -2.00 | 0.34 | -2.00 | -4.66 | 0.98 | 6.64 | 235.46 | 0.1405 | 821.9 | 999999 | |
| 14.66 | -2.00 | 7.32 | -2.00 | -3.56 | 0.77 | 6.42 | 241.65 | 0.1274 | 1489.6 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.06 | -5.25 | 0.01 | 5.66 | 227.63 | 0.1335 | 1184.0 | 926.4 | |
| 0.00 | 0.94 | 0.00 | 0.47 | -5.55 | 359.20 | 4.86 | 221.66 | 0.1273 | -765.0 | -581.5 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -5.52 | 358.79 | 4.44 | 219.29 | 0.1222 | -881.0 | -693.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
