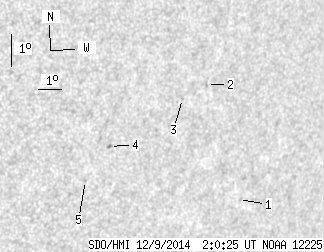

SDO HMI 2014-12-09 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.54 | 0.00 | 3.94 | -14.57 | 37.79 | 43.99 | 249.55 | 0.7195 | 165.6 | 229.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-09 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.34 | 0.00 | 0.26 | -16.73 | 42.07 | 48.27 | 248.15 | 0.7723 | 95.0 | 112.2 | |
| 0.00 | 1.53 | 0.00 | 1.12 | -13.21 | 39.61 | 45.81 | 251.98 | 0.7365 | 602.0 | 521.1 | |
| 0.00 | 1.02 | 0.00 | 0.74 | -13.64 | 38.67 | 44.87 | 251.13 | 0.7270 | 454.0 | 425.3 | |
| 0.00 | 1.71 | 0.00 | 1.18 | -15.10 | 35.95 | 42.15 | 248.21 | 0.7001 | 393.0 | 340.1 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -16.14 | 35.22 | 41.42 | 246.48 | 0.6954 | -716.0 | -656.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
