SDO HMI 2014-12-09 03:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.66 | 0.00 | 7.67 | -14.36 | 38.01 | 44.76 | 250.09 | 0.7276 | 123.8 | 95.8 | |
|
previous
or next observation for the same group /

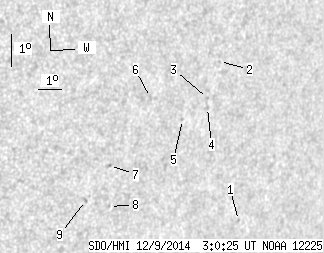

back to the solar disc SDO HMI 2014-12-09 03:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.74 | -16.74 | 42.13 | 48.88 | 248.34 | 0.7786 | 286.0 | 351.4 | |
| 0.00 | 0.94 | 0.00 | 0.69 | -11.89 | 39.90 | 46.65 | 253.97 | 0.7427 | 328.0 | 387.2 | |
| 0.00 | 1.02 | 0.00 | 0.75 | -13.01 | 39.63 | 46.38 | 252.42 | 0.7423 | 548.0 | 452.5 | |
| 0.00 | 1.19 | 0.00 | 0.88 | -13.28 | 39.70 | 46.45 | 252.07 | 0.7437 | 486.0 | 447.9 | |
| 0.00 | 1.02 | 0.00 | 0.74 | -13.64 | 38.69 | 45.44 | 251.30 | 0.7334 | 520.0 | 409.1 | |
| 0.00 | 1.36 | 0.00 | 0.96 | -12.98 | 37.17 | 43.91 | 251.74 | 0.7141 | -234.0 | -272.8 | |
| 0.00 | 1.88 | 0.00 | 1.31 | -15.05 | 35.93 | 42.68 | 248.49 | 0.7060 | 176.0 | 198.3 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -16.30 | 36.26 | 43.01 | 246.91 | 0.7140 | -272.0 | -353.4 | |
| 0.00 | 1.71 | 0.00 | 1.18 | -16.12 | 35.20 | 41.95 | 246.74 | 0.7014 | -724.0 | -574.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
