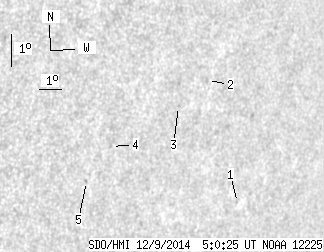

SDO HMI 2014-12-09 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.95 | 0.00 | 3.65 | -14.50 | 38.37 | 46.21 | 250.36 | 0.7440 | 123.8 | 140.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-09 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.48 | -16.72 | 42.13 | 49.98 | 248.69 | 0.7895 | 430.0 | 336.7 | |
| 0.00 | 1.71 | 0.00 | 1.28 | -12.99 | 39.61 | 47.45 | 252.73 | 0.7541 | 317.0 | 308.3 | |
| 0.00 | 0.94 | 0.00 | 0.69 | -13.78 | 38.52 | 46.36 | 251.40 | 0.7439 | 154.0 | 155.4 | |
| 0.00 | 0.68 | 0.00 | 0.48 | -15.00 | 35.92 | 43.77 | 248.96 | 0.7182 | 350.0 | 379.8 | |
| 0.00 | 1.02 | 0.00 | 0.72 | -16.07 | 35.15 | 42.99 | 247.22 | 0.7130 | -632.0 | -462.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
