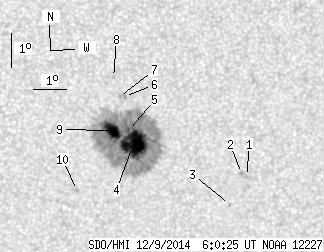

SDO HMI 2014-12-09 06:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.37 | 333.60 | 28.38 | 167.99 | -3.85 | 1.27 | 9.65 | 248.94 | 0.1802 | 1287.4 | 422.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-09 06:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.39 | -4.94 | 4.84 | 13.23 | 249.88 | 0.2439 | 900.0 | 794.7 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -4.85 | 4.69 | 13.07 | 250.02 | 0.2410 | 997.0 | 801.5 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -5.77 | 4.34 | 12.73 | 245.93 | 0.2412 | 739.0 | 552.1 | |
| 41.02 | 325.07 | 20.66 | 163.67 | -3.96 | 1.41 | 9.80 | 248.63 | 0.1832 | 1428.1 | 416.8 | |
| 0.26 | -4.00 | 0.13 | -4.00 | -3.58 | 1.26 | 9.64 | 250.34 | 0.1784 | 1050.3 | 999999 | |
| 0.00 | 1.96 | 0.00 | 0.99 | -2.57 | 1.13 | 9.52 | 255.66 | 0.1713 | 799.0 | 705.3 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -2.57 | 0.98 | 9.37 | 255.45 | 0.1688 | 783.0 | 673.6 | |
| 0.00 | 0.94 | 0.00 | 0.47 | -2.01 | 0.80 | 9.18 | 258.51 | 0.1635 | -656.0 | -481.2 | |
| 15.09 | -4.00 | 7.59 | -4.00 | -3.57 | 0.78 | 9.16 | 249.41 | 0.1706 | 1513.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -5.35 | 359.75 | 8.14 | 237.25 | 0.1683 | 1095.0 | 897.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
