SDO HMI 2014-12-09 10:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.43 | 6.82 | 0.32 | 5.31 | -15.70 | 38.05 | 48.62 | 249.57 | 0.7722 | -127.3 | -39.1 | |
|
previous
or next observation for the same group /

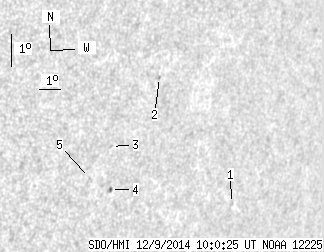

back to the solar disc SDO HMI 2014-12-09 10:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.96 | 0.00 | 1.67 | -16.76 | 42.09 | 52.66 | 249.36 | 0.8157 | 429.0 | 364.1 | |
| 0.00 | 1.11 | 0.00 | 0.84 | -12.92 | 37.39 | 47.96 | 252.98 | 0.7594 | -426.0 | -391.0 | |
| 0.00 | 1.02 | 0.00 | 0.76 | -15.02 | 35.80 | 46.37 | 249.81 | 0.7472 | 581.0 | 417.2 | |
| 0.43 | 1.96 | 0.32 | 1.47 | -16.34 | 36.14 | 46.71 | 248.21 | 0.7546 | -542.0 | -453.4 | |
| 0.00 | 0.77 | 0.00 | 0.57 | -15.97 | 35.10 | 45.66 | 248.34 | 0.7422 | -546.0 | -476.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
