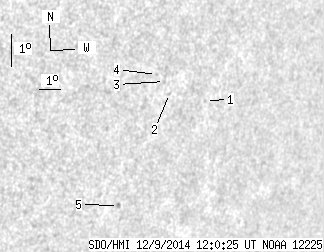

SDO HMI 2014-12-09 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.73 | 0.00 | 5.20 | -13.87 | 37.12 | 48.78 | 251.96 | 0.7705 | -291.0 | -278.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-09 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.82 | -13.13 | 39.20 | 50.86 | 253.40 | 0.7905 | 587.0 | 523.0 | |
| 0.00 | 1.19 | 0.00 | 0.93 | -12.92 | 37.44 | 49.10 | 253.26 | 0.7716 | -360.0 | -340.6 | |
| 0.00 | 1.45 | 0.00 | 1.11 | -12.55 | 37.11 | 48.77 | 253.65 | 0.7674 | -448.0 | -405.1 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -12.34 | 36.69 | 48.35 | 253.83 | 0.7624 | -592.0 | -517.9 | |
| 0.00 | 2.13 | 0.00 | 1.63 | -16.34 | 36.09 | 47.75 | 248.54 | 0.7656 | -642.0 | -454.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
