SDO HMI 2014-12-09 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.06 | 0.00 | 5.73 | 16.91 | 10.88 | 23.64 | 308.39 | 0.4953 | -142.8 | -60.4 | |
|
previous
or next observation for the same group /

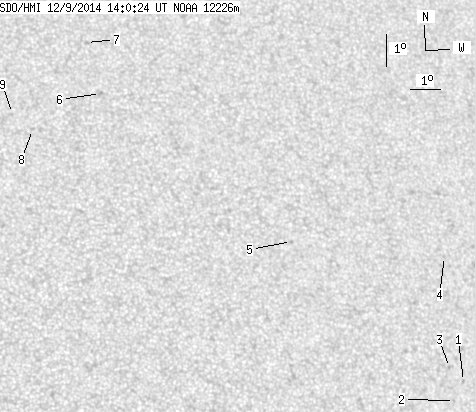

back to the solar disc SDO HMI 2014-12-09 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.70 | 11.57 | 17.82 | 30.57 | 292.18 | 0.5403 | -744.0 | -619.9 | |
| 0.00 | 0.43 | 0.00 | 0.25 | 10.99 | 17.43 | 30.19 | 291.39 | 0.5323 | -789.0 | -725.8 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 11.99 | 17.38 | 30.14 | 293.19 | 0.5364 | -766.0 | -628.2 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 15.37 | 17.69 | 30.45 | 298.71 | 0.5593 | -788.0 | -611.1 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 15.82 | 12.45 | 25.20 | 303.91 | 0.4957 | -686.0 | -516.1 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 20.42 | 6.65 | 19.41 | 318.49 | 0.4718 | 736.0 | 521.1 | |
| 0.00 | 1.28 | 0.00 | 0.72 | 22.04 | 6.40 | 19.16 | 321.18 | 0.4873 | 444.0 | 434.8 | |
| 0.00 | 1.79 | 0.00 | 0.98 | 19.29 | 4.26 | 17.02 | 320.34 | 0.4347 | 565.0 | 417.0 | |
| 0.00 | 0.51 | 0.00 | 0.28 | 19.79 | 3.66 | 16.42 | 322.09 | 0.4347 | 743.0 | 607.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
