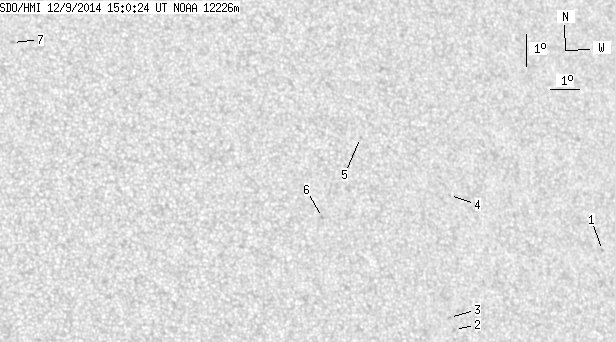

SDO HMI 2014-12-09 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.50 | 0.00 | 4.38 | 14.82 | 14.57 | 27.88 | 300.91 | 0.5295 | -482.0 | -353.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-09 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.65 | 13.39 | 23.17 | 36.48 | 292.03 | 0.6262 | -682.0 | -597.8 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 10.99 | 17.44 | 30.75 | 291.07 | 0.5400 | -809.0 | -658.2 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 11.35 | 17.31 | 30.61 | 291.78 | 0.5398 | -742.0 | -599.0 | |
| 0.00 | 0.85 | 0.00 | 0.51 | 15.06 | 17.83 | 31.14 | 297.72 | 0.5664 | -563.0 | -501.3 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 16.84 | 14.98 | 28.28 | 302.81 | 0.5418 | -567.0 | -583.3 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 14.38 | 13.30 | 26.61 | 300.06 | 0.5033 | -701.0 | -586.8 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 19.79 | 3.63 | 16.94 | 321.23 | 0.4398 | 690.0 | 574.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
