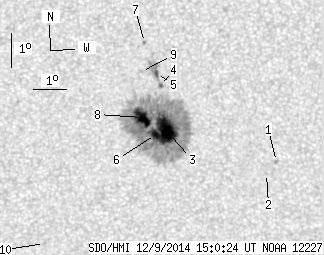

SDO HMI 2014-12-09 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.93 | 344.30 | 31.25 | 176.56 | -3.85 | 1.28 | 14.58 | 255.71 | 0.2605 | 1179.0 | 382.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-09 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.76 | -4.91 | 4.92 | 18.23 | 255.15 | 0.3239 | 894.0 | 712.6 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -5.27 | 4.62 | 17.93 | 253.84 | 0.3206 | 776.0 | 567.7 | |
| 34.94 | 323.50 | 17.94 | 165.90 | -4.00 | 1.51 | 14.81 | 255.37 | 0.2648 | 1346.0 | 388.9 | |
| 0.51 | 15.34 | 0.26 | 7.85 | -2.67 | 1.30 | 14.61 | 260.23 | 0.2569 | 984.7 | 365.8 | |
| 1.53 | -4.00 | 0.79 | -4.00 | -2.31 | 1.18 | 14.49 | 261.53 | 0.2538 | 815.0 | 999999 | |
| 7.93 | -3.00 | 4.06 | -3.00 | -4.11 | 1.17 | 14.48 | 254.61 | 0.2598 | 1346.7 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -1.40 | 0.81 | 14.11 | 265.02 | 0.2458 | -913.0 | -717.9 | |
| 16.02 | -3.00 | 8.20 | -3.00 | -3.61 | 0.77 | 14.07 | 256.14 | 0.2511 | 1437.6 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -2.25 | 0.72 | 14.03 | 261.50 | 0.2460 | 748.0 | 472.9 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -7.34 | 357.86 | 11.17 | 237.01 | 0.2301 | -876.0 | -749.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
