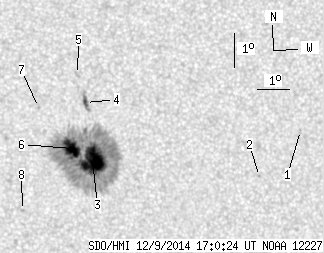

SDO HMI 2014-12-09 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.75 | 325.41 | 29.25 | 167.78 | -3.83 | 1.23 | 15.65 | 256.70 | 0.2778 | 1235.0 | 407.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-09 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.55 | -3.11 | 7.91 | 22.32 | 262.30 | 0.3844 | 747.0 | 570.8 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -4.47 | 6.64 | 21.05 | 258.18 | 0.3675 | 723.0 | 562.9 | |
| 36.90 | 311.10 | 19.04 | 160.38 | -4.00 | 1.41 | 15.83 | 256.25 | 0.2814 | 1377.0 | 407.4 | |
| 2.13 | 8.09 | 1.10 | 4.17 | -2.29 | 1.18 | 15.59 | 262.22 | 0.2722 | 915.0 | 662.4 | |
| 0.00 | 2.05 | 0.00 | 1.05 | -1.46 | 0.92 | 15.33 | 265.19 | 0.2665 | -867.0 | -659.5 | |
| 17.72 | -3.00 | 9.11 | -3.00 | -3.64 | 0.76 | 15.18 | 256.99 | 0.2694 | 1420.4 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -2.43 | 359.74 | 14.15 | 260.88 | 0.2485 | 751.0 | 596.7 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -5.48 | 359.30 | 13.71 | 248.64 | 0.2545 | 780.0 | 572.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
