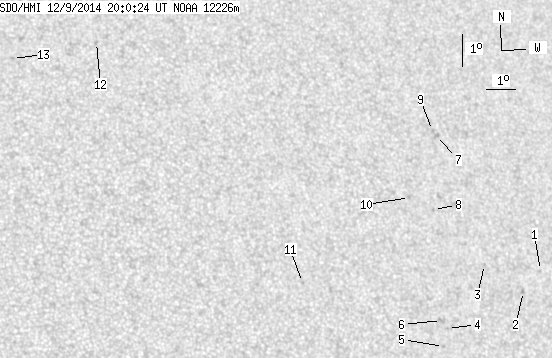

SDO HMI 2014-12-09 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.84 | 0.00 | 11.51 | 14.78 | 16.55 | 32.62 | 296.83 | 0.5871 | -434.2 | -399.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-09 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.60 | 13.31 | 21.50 | 37.57 | 291.44 | 0.6398 | -641.0 | -509.5 | |
| 0.00 | 1.96 | 0.00 | 1.24 | 12.67 | 20.74 | 36.81 | 290.81 | 0.6276 | -637.0 | -564.3 | |
| 0.00 | 0.85 | 0.00 | 0.53 | 13.49 | 19.41 | 35.48 | 292.70 | 0.6141 | -562.0 | -555.8 | |
| 0.00 | 0.77 | 0.00 | 0.47 | 11.55 | 17.74 | 33.81 | 290.43 | 0.5841 | -684.0 | -607.4 | |
| 0.00 | 1.02 | 0.00 | 0.62 | 11.00 | 17.53 | 33.60 | 289.64 | 0.5789 | -624.0 | -468.1 | |
| 0.00 | 3.58 | 0.00 | 2.18 | 11.79 | 17.56 | 33.63 | 290.92 | 0.5826 | -784.0 | -600.1 | |
| 0.00 | 2.39 | 0.00 | 1.50 | 17.45 | 18.39 | 34.46 | 299.27 | 0.6211 | -623.0 | -560.7 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 15.16 | 17.82 | 33.89 | 296.17 | 0.6019 | -780.0 | -644.4 | |
| 0.00 | 1.53 | 0.00 | 0.97 | 17.60 | 18.27 | 34.34 | 299.58 | 0.6206 | -528.0 | -391.4 | |
| 0.00 | 1.28 | 0.00 | 0.78 | 15.53 | 17.00 | 33.07 | 297.24 | 0.5936 | -703.0 | -583.1 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 12.93 | 12.79 | 28.86 | 295.74 | 0.5244 | -555.0 | -491.8 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 20.34 | 6.80 | 22.87 | 313.89 | 0.5078 | 700.0 | 576.5 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 19.83 | 3.89 | 19.96 | 316.84 | 0.4714 | 776.0 | 638.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
