SDO HMI 2014-12-09 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.88 | 0.00 | 10.72 | 13.63 | 18.52 | 36.25 | 292.87 | 0.6257 | -530.1 | -478.9 | |
|
previous
or next observation for the same group /

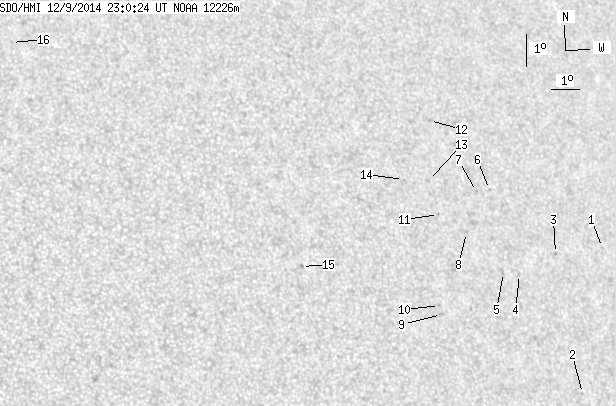

back to the solar disc SDO HMI 2014-12-09 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.53 | 13.55 | 24.33 | 42.06 | 290.01 | 0.6955 | -535.0 | -388.9 | |
| 0.00 | 1.02 | 0.00 | 0.67 | 9.15 | 22.74 | 40.47 | 284.18 | 0.6633 | -594.0 | -466.3 | |
| 0.00 | 1.11 | 0.00 | 0.74 | 13.37 | 22.40 | 40.12 | 290.47 | 0.6716 | -628.0 | -477.5 | |
| 0.00 | 1.53 | 0.00 | 1.00 | 12.73 | 20.86 | 38.59 | 290.15 | 0.6504 | -577.0 | -452.9 | |
| 0.00 | 1.11 | 0.00 | 0.71 | 12.78 | 20.25 | 37.98 | 290.49 | 0.6430 | -680.0 | -516.2 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 15.32 | 20.21 | 37.94 | 294.25 | 0.6527 | -583.0 | -497.5 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 15.25 | 19.69 | 37.42 | 294.41 | 0.6461 | -561.0 | -467.9 | |
| 0.00 | 0.68 | 0.00 | 0.44 | 14.00 | 19.06 | 36.78 | 292.86 | 0.6329 | -605.0 | -514.5 | |
| 0.00 | 2.30 | 0.00 | 1.43 | 11.51 | 17.70 | 35.43 | 289.64 | 0.6054 | -669.0 | -581.8 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 11.78 | 17.67 | 35.39 | 290.08 | 0.6060 | -651.0 | -573.4 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 14.55 | 18.10 | 35.83 | 294.17 | 0.6233 | -672.0 | -632.6 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 17.44 | 18.37 | 36.09 | 298.31 | 0.6407 | -665.0 | -579.9 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 15.59 | 17.93 | 35.65 | 295.83 | 0.6261 | -696.0 | -570.7 | |
| 0.00 | 0.51 | 0.00 | 0.32 | 15.62 | 16.99 | 34.72 | 296.40 | 0.6147 | -551.0 | -567.0 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 12.95 | 12.85 | 30.58 | 294.64 | 0.5476 | -488.0 | -564.4 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 19.85 | 3.88 | 21.61 | 314.72 | 0.4895 | 673.0 | 608.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
