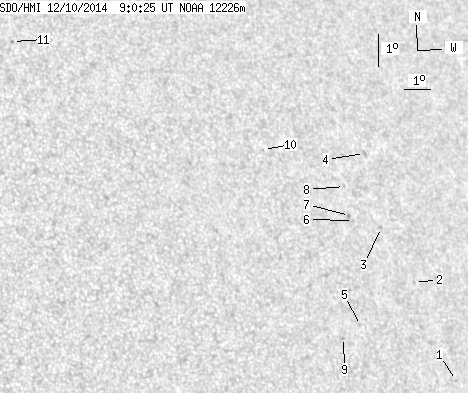

SDO HMI 2014-12-10 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.25 | 0.00 | 7.65 | 14.77 | 17.62 | 40.82 | 292.51 | 0.6867 | -456.4 | -380.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-10 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.66 | 9.91 | 21.49 | 44.69 | 284.23 | 0.7171 | -475.0 | -462.6 | |
| 0.00 | 0.68 | 0.00 | 0.48 | 12.86 | 20.31 | 43.50 | 288.63 | 0.7106 | -554.0 | -478.4 | |
| 0.00 | 1.19 | 0.00 | 0.83 | 14.54 | 19.32 | 42.51 | 291.27 | 0.7043 | -446.0 | -290.1 | |
| 0.00 | 1.88 | 0.00 | 1.32 | 16.81 | 19.20 | 42.40 | 294.41 | 0.7111 | -650.0 | -506.7 | |
| 0.00 | 0.94 | 0.00 | 0.63 | 11.55 | 17.83 | 41.03 | 287.61 | 0.6771 | -597.0 | -499.5 | |
| 0.00 | 0.77 | 0.00 | 0.52 | 14.75 | 18.21 | 41.41 | 291.99 | 0.6922 | -641.0 | -513.2 | |
| 0.00 | 1.53 | 0.00 | 1.05 | 14.90 | 18.09 | 41.28 | 292.25 | 0.6913 | -778.0 | -575.9 | |
| 0.00 | 1.02 | 0.00 | 0.70 | 15.79 | 18.10 | 41.30 | 293.48 | 0.6947 | -331.0 | -311.9 | |
| 0.00 | 0.68 | 0.00 | 0.45 | 11.19 | 17.09 | 40.29 | 287.33 | 0.6669 | -683.0 | -619.9 | |
| 0.00 | 0.51 | 0.00 | 0.34 | 16.92 | 15.12 | 38.32 | 296.44 | 0.6648 | -616.0 | -521.5 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 20.27 | 6.43 | 29.62 | 307.10 | 0.5836 | 751.0 | 580.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
