SDO HMI 2014-12-10 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.16 | 0.00 | 2.22 | 15.26 | 16.92 | 42.30 | 293.10 | 0.7062 | -170.2 | -182.3 | |
|
previous
or next observation for the same group /

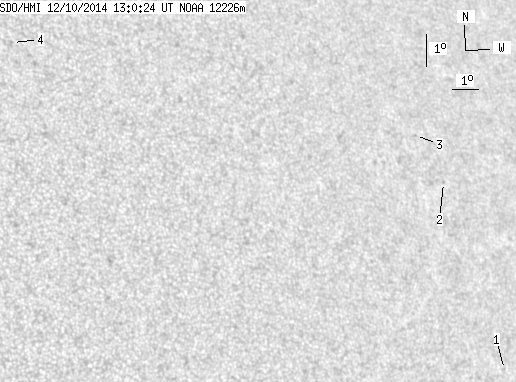

back to the solar disc SDO HMI 2014-12-10 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.56 | 9.82 | 21.44 | 46.82 | 283.62 | 0.7417 | -453.0 | -440.1 | |
| 0.00 | 1.02 | 0.00 | 0.75 | 15.49 | 20.10 | 45.49 | 291.50 | 0.7410 | -399.0 | -332.5 | |
| 0.00 | 0.60 | 0.00 | 0.44 | 16.93 | 19.31 | 44.69 | 293.67 | 0.7369 | -520.0 | -465.3 | |
| 0.00 | 0.77 | 0.00 | 0.47 | 19.79 | 4.21 | 29.59 | 306.42 | 0.5797 | 691.0 | 638.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
