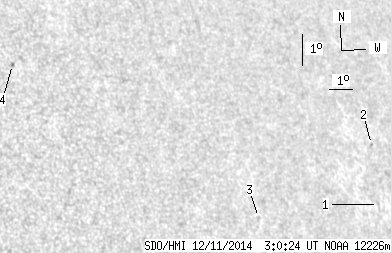

SDO HMI 2014-12-11 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.77 | 0.00 | 3.61 | 16.80 | 13.22 | 46.33 | 293.42 | 0.7530 | -124.5 | -85.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-11 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.78 | 15.19 | 18.93 | 52.03 | 289.27 | 0.8082 | -343.0 | -369.6 | |
| 0.00 | 1.02 | 0.00 | 0.87 | 17.04 | 19.27 | 52.37 | 291.41 | 0.8156 | -419.0 | -393.3 | |
| 0.00 | 1.19 | 0.00 | 0.89 | 14.76 | 13.15 | 46.26 | 290.36 | 0.7475 | -437.0 | -369.9 | |
| 0.00 | 1.62 | 0.00 | 1.07 | 19.46 | 4.21 | 37.32 | 300.61 | 0.6665 | 701.0 | 605.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
