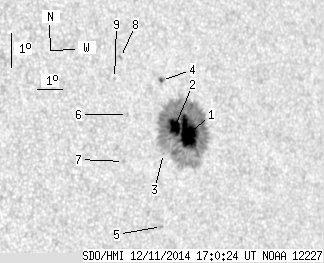

SDO HMI 2014-12-11 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.69 | 256.10 | 29.14 | 170.60 | -4.09 | 1.13 | 41.90 | 264.38 | 0.6717 | 999.8 | 320.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-11 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.34 | 246.40 | 20.96 | 164.30 | -4.15 | 1.35 | 42.12 | 264.31 | 0.6745 | 1060.4 | 314.7 | |
| 11.33 | -1.00 | 7.51 | -1.00 | -3.98 | 0.78 | 41.55 | 264.52 | 0.6670 | 1279.9 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -4.75 | 0.40 | 41.16 | 263.31 | 0.6628 | 574.0 | 559.9 | |
| 1.02 | 2.13 | 0.67 | 1.40 | -2.59 | 0.20 | 40.97 | 266.57 | 0.6585 | 662.5 | 522.7 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -6.91 | 0.51 | 41.27 | 260.08 | 0.6672 | 699.0 | 594.2 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -3.60 | 358.92 | 39.69 | 264.91 | 0.6422 | 628.0 | 623.0 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -4.99 | 358.85 | 39.62 | 262.73 | 0.6427 | 671.0 | 608.8 | |
| 0.00 | 1.87 | 0.00 | 1.20 | -1.91 | 358.59 | 39.35 | 267.52 | 0.6367 | 744.0 | 561.5 | |
| 0.00 | 1.02 | 0.00 | 0.65 | -2.54 | 358.38 | 39.14 | 266.53 | 0.6341 | -463.0 | -361.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
