SDO HMI 2014-12-11 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.54 | 236.27 | 25.50 | 164.68 | -4.13 | 1.12 | 44.65 | 264.60 | 0.7064 | 919.1 | 342.0 | |
|
previous
or next observation for the same group /

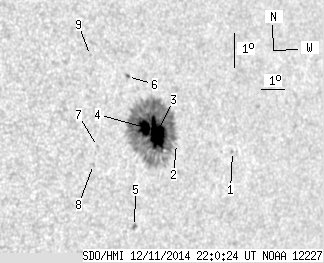

back to the solar disc SDO HMI 2014-12-11 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.82 | -4.67 | 4.61 | 48.14 | 264.16 | 0.7486 | 537.0 | 410.5 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -4.45 | 2.16 | 45.69 | 264.25 | 0.7193 | -221.0 | -189.4 | |
| 25.89 | 228.00 | 18.12 | 158.98 | -4.16 | 1.29 | 44.82 | 264.58 | 0.7085 | 985.8 | 337.8 | |
| 10.65 | -3.00 | 7.38 | -3.00 | -3.98 | 0.78 | 44.31 | 264.79 | 0.7021 | 1221.8 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.77 | -6.92 | 0.63 | 44.16 | 260.59 | 0.7034 | 752.0 | 586.6 | |
| 0.00 | 1.28 | 0.00 | 0.87 | -2.48 | 360.00 | 43.53 | 266.90 | 0.6914 | 340.0 | 429.9 | |
| 0.00 | 0.85 | 0.00 | 0.57 | -4.55 | 358.90 | 42.43 | 263.78 | 0.6789 | 398.0 | 312.2 | |
| 0.00 | 1.19 | 0.00 | 0.80 | -5.09 | 358.78 | 42.31 | 262.98 | 0.6779 | 639.0 | 545.6 | |
| 0.00 | 0.68 | 0.00 | 0.45 | -1.86 | 358.48 | 42.01 | 267.74 | 0.6718 | 546.0 | 500.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
