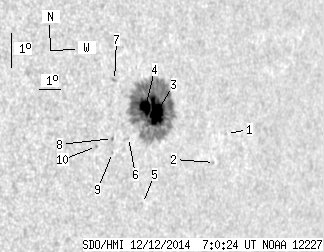

SDO HMI 2014-12-12 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.23 | 213.56 | 25.42 | 163.18 | -4.16 | 1.10 | 49.56 | 264.99 | 0.7643 | 890.0 | 302.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-12 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.35 | -4.78 | 4.69 | 53.15 | 264.43 | 0.8035 | 441.0 | 388.8 | |
| 0.00 | 0.43 | 0.00 | 0.35 | -5.65 | 4.20 | 52.66 | 263.32 | 0.7989 | 406.0 | 387.4 | |
| 22.75 | 206.48 | 17.46 | 157.87 | -4.18 | 1.29 | 49.75 | 264.98 | 0.7664 | 952.8 | 299.6 | |
| 10.48 | -3.00 | 7.96 | -3.00 | -4.04 | 0.77 | 49.23 | 265.14 | 0.7606 | 1230.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.85 | -6.89 | 0.95 | 49.41 | 261.42 | 0.7648 | 645.0 | 488.2 | |
| 0.00 | 0.51 | 0.00 | 0.38 | -4.93 | 0.08 | 48.54 | 263.91 | 0.7533 | 371.0 | 385.5 | |
| 0.00 | 1.87 | 0.00 | 1.38 | -3.25 | 359.33 | 47.79 | 266.11 | 0.7435 | 603.0 | 433.9 | |
| 0.00 | 0.94 | 0.00 | 0.69 | -4.96 | 359.37 | 47.83 | 263.80 | 0.7451 | 571.0 | 537.8 | |
| 0.00 | 0.85 | 0.00 | 0.63 | -5.38 | 359.41 | 47.87 | 263.25 | 0.7459 | -304.0 | -312.0 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -5.21 | 358.69 | 47.15 | 263.41 | 0.7373 | 579.0 | 521.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
