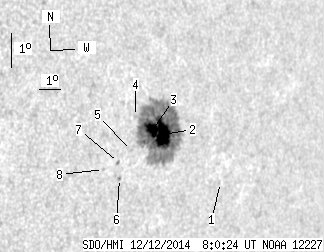

SDO HMI 2014-12-12 08:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.28 | 204.01 | 27.30 | 157.79 | -4.16 | 1.08 | 50.08 | 265.04 | 0.7702 | 886.0 | 268.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-12 08:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.57 | -5.59 | 4.20 | 53.20 | 263.44 | 0.8045 | 346.0 | 322.1 | |
| 24.12 | 198.04 | 18.72 | 153.25 | -4.18 | 1.26 | 50.26 | 265.02 | 0.7722 | 929.0 | 270.7 | |
| 11.16 | -2.00 | 8.58 | -2.00 | -4.04 | 0.78 | 49.79 | 265.18 | 0.7668 | 1219.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.84 | -3.66 | 359.98 | 48.98 | 265.63 | 0.7575 | 193.0 | 167.8 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -4.66 | 359.88 | 48.88 | 264.29 | 0.7569 | 241.0 | 206.6 | |
| 0.00 | 1.28 | 0.00 | 0.96 | -5.50 | 359.42 | 48.42 | 263.15 | 0.7523 | -439.0 | -324.3 | |
| 0.00 | 1.36 | 0.00 | 1.02 | -5.02 | 359.33 | 48.33 | 263.77 | 0.7509 | 617.0 | 516.8 | |
| 0.00 | 0.77 | 0.00 | 0.57 | -5.23 | 358.68 | 47.68 | 263.43 | 0.7436 | 695.0 | 579.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
