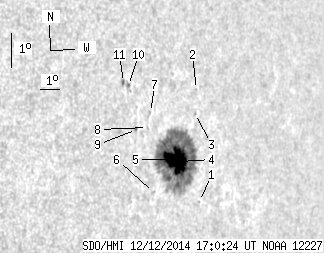

SDO HMI 2014-12-12 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.00 | 191.94 | 26.84 | 165.97 | -4.09 | 1.05 | 55.00 | 265.41 | 0.8218 | 722.4 | 216.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-12 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.69 | -5.34 | 2.48 | 56.42 | 263.97 | 0.8363 | -342.0 | -292.4 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -2.03 | 2.00 | 55.95 | 267.94 | 0.8307 | -500.0 | -456.7 | |
| 0.00 | 1.02 | 0.00 | 0.90 | -2.74 | 1.99 | 55.93 | 267.08 | 0.8307 | 269.0 | 221.2 | |
| 21.12 | 182.05 | 18.36 | 157.71 | -4.16 | 1.27 | 55.22 | 265.33 | 0.8241 | 829.3 | 227.4 | |
| 9.88 | -4.00 | 8.48 | -4.00 | -4.11 | 0.80 | 54.74 | 265.38 | 0.8193 | 1166.9 | 999999 | |
| 0.00 | 1.28 | 0.00 | 1.08 | -5.09 | 0.04 | 53.98 | 264.13 | 0.8121 | 574.0 | 472.6 | |
| 0.00 | 0.60 | 0.00 | 0.50 | -2.72 | 359.67 | 53.61 | 267.04 | 0.8074 | 445.0 | 427.1 | |
| 0.00 | 0.68 | 0.00 | 0.57 | -3.17 | 359.55 | 53.49 | 266.48 | 0.8063 | 498.0 | 473.6 | |
| 0.00 | 1.28 | 0.00 | 1.05 | -3.23 | 359.01 | 52.95 | 266.38 | 0.8007 | 625.0 | 466.8 | |
| 0.00 | 2.04 | 0.00 | 1.66 | -1.93 | 358.54 | 52.48 | 268.00 | 0.7955 | -127.0 | -147.0 | |
| 0.00 | 1.96 | 0.00 | 1.58 | -1.85 | 358.30 | 52.24 | 268.11 | 0.7929 | -672.0 | -471.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
