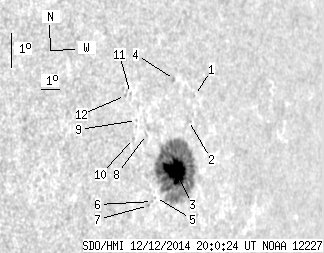

SDO HMI 2014-12-12 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.31 | 184.03 | 27.37 | 166.11 | -4.07 | 1.05 | 56.65 | 265.52 | 0.8379 | 713.4 | 224.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-12 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.55 | -1.90 | 1.96 | 57.56 | 268.12 | 0.8461 | -296.0 | -361.6 | |
| 0.00 | 1.96 | 0.00 | 1.80 | -2.65 | 1.68 | 57.28 | 267.23 | 0.8435 | -94.0 | -6.7 | |
| 30.31 | 175.23 | 27.37 | 158.38 | -4.13 | 1.10 | 56.70 | 265.45 | 0.8384 | 958.4 | 235.0 | |
| 0.00 | 0.94 | 0.00 | 0.84 | -1.44 | 0.85 | 56.45 | 268.66 | 0.8356 | -575.0 | -503.5 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -4.94 | 0.12 | 55.72 | 264.43 | 0.8294 | 607.0 | 617.3 | |
| 0.00 | 0.51 | 0.00 | 0.45 | -5.06 | 359.98 | 55.58 | 264.28 | 0.8280 | 461.0 | 481.3 | |
| 0.00 | 0.94 | 0.00 | 0.82 | -5.18 | 359.78 | 55.38 | 264.12 | 0.8262 | 458.0 | 392.9 | |
| 0.00 | 0.77 | 0.00 | 0.66 | -3.08 | 359.46 | 55.06 | 266.66 | 0.8222 | 374.0 | 381.8 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -2.67 | 358.92 | 54.52 | 267.14 | 0.8167 | 411.0 | 424.3 | |
| 0.00 | 1.02 | 0.00 | 0.87 | -3.20 | 358.80 | 54.40 | 266.49 | 0.8156 | 220.0 | 256.6 | |
| 0.00 | 0.77 | 0.00 | 0.65 | -1.87 | 358.57 | 54.17 | 268.12 | 0.8130 | -158.0 | -182.3 | |
| 0.00 | 0.77 | 0.00 | 0.64 | -1.93 | 358.32 | 53.92 | 268.04 | 0.8105 | -266.0 | -274.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
