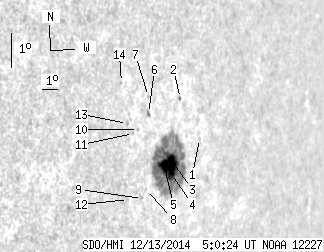

SDO HMI 2014-12-13 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.64 | 153.37 | 26.83 | 160.20 | -4.12 | 1.11 | 61.65 | 265.68 | 0.8823 | 601.2 | 202.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-13 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.85 | -3.34 | 3.04 | 63.58 | 266.60 | 0.8975 | -253.0 | -281.8 | |
| 0.00 | 1.36 | 0.00 | 1.45 | -2.17 | 1.68 | 62.23 | 267.89 | 0.8867 | 156.0 | 123.8 | |
| 9.54 | 144.32 | 10.04 | 151.07 | -4.04 | 1.36 | 61.91 | 265.77 | 0.8844 | 607.0 | 204.3 | |
| 6.13 | -3.00 | 6.45 | -3.00 | -4.39 | 1.35 | 61.89 | 265.37 | 0.8843 | 628.2 | 999999 | |
| 9.97 | -3.00 | 10.34 | -3.00 | -4.19 | 0.88 | 61.42 | 265.59 | 0.8804 | 1001.1 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.96 | -2.63 | 359.73 | 60.28 | 267.34 | 0.8705 | 396.0 | 311.2 | |
| 0.00 | 0.77 | 0.00 | 0.77 | -2.13 | 359.70 | 60.24 | 267.92 | 0.8702 | -280.0 | -232.9 | |
| 0.00 | 0.68 | 0.00 | 0.69 | -4.88 | 359.87 | 60.42 | 264.76 | 0.8721 | 486.0 | 422.4 | |
| 0.00 | 0.43 | 0.00 | 0.43 | -5.15 | 359.67 | 60.22 | 264.44 | 0.8705 | 601.0 | 547.4 | |
| 0.00 | 0.60 | 0.00 | 0.59 | -3.11 | 359.18 | 59.72 | 266.78 | 0.8658 | 401.0 | 412.6 | |
| 0.00 | 0.60 | 0.00 | 0.58 | -3.23 | 358.89 | 59.44 | 266.64 | 0.8633 | 350.0 | 339.3 | |
| 0.00 | 0.43 | 0.00 | 0.42 | -5.19 | 358.84 | 59.39 | 264.36 | 0.8633 | 386.0 | 353.8 | |
| 0.00 | 0.85 | 0.00 | 0.82 | -2.94 | 358.52 | 59.07 | 266.97 | 0.8599 | 343.0 | 379.5 | |
| 0.00 | 0.60 | 0.00 | 0.57 | -1.73 | 358.09 | 58.64 | 268.38 | 0.8560 | -341.0 | -404.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
