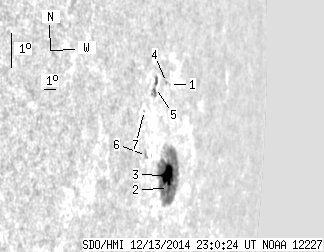

SDO HMI 2014-12-13 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.45 | 97.58 | 27.66 | 153.27 | -4.02 | 1.13 | 71.57 | 266.01 | 0.9500 | 335.0 | 67.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-13 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.40 | -1.50 | 1.06 | 71.50 | 268.66 | 0.9497 | 367.0 | 347.0 | |
| 2.81 | 85.99 | 4.51 | 136.38 | -4.58 | 1.46 | 71.89 | 265.42 | 0.9519 | 102.5 | 101.9 | |
| 14.64 | -2.00 | 23.15 | -2.00 | -4.20 | 1.27 | 71.71 | 265.82 | 0.9508 | 452.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 1.44 | -1.45 | 0.78 | 71.21 | 268.72 | 0.9481 | -275.0 | -228.7 | |
| 0.00 | 7.24 | 0.00 | 10.57 | -1.61 | 359.79 | 70.22 | 268.56 | 0.9425 | -616.0 | -386.4 | |
| 0.00 | 2.64 | 0.00 | 3.76 | -3.63 | 359.25 | 69.69 | 266.41 | 0.9393 | 578.0 | 449.3 | |
| 0.00 | 0.51 | 0.00 | 0.72 | -2.30 | 358.90 | 69.33 | 267.82 | 0.9371 | -47.0 | 0.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
