SDO HMI 2014-12-14 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.92 | 76.48 | 22.87 | 145.78 | -4.02 | 1.09 | 74.82 | 266.05 | 0.9662 | 319.1 | 53.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-14 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

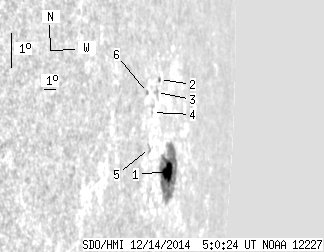

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.92 | 67.97 | 22.87 | 131.26 | -4.21 | 1.28 | 75.01 | 265.85 | 0.9671 | 396.6 | 62.4 | |
| 0.00 | 1.19 | 0.00 | 2.10 | -1.50 | 359.92 | 73.64 | 268.67 | 0.9607 | -335.0 | -298.5 | |
| 0.00 | 3.15 | 0.00 | 5.45 | -1.89 | 359.64 | 73.36 | 268.27 | 0.9593 | -210.0 | -169.6 | |
| 0.00 | 0.51 | 0.00 | 0.87 | -2.48 | 359.29 | 73.02 | 267.64 | 0.9576 | 133.0 | 123.5 | |
| 0.00 | 2.30 | 0.00 | 3.87 | -3.55 | 359.17 | 72.89 | 266.52 | 0.9570 | 525.0 | 463.5 | |
| 0.00 | 1.36 | 0.00 | 2.23 | -1.90 | 358.72 | 72.44 | 268.26 | 0.9547 | -289.0 | -239.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
