SDO HMI 2014-12-14 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.93 | 75.04 | 23.75 | 148.87 | -4.01 | 1.18 | 75.45 | 266.07 | 0.9690 | 281.7 | 19.7 | |
|
previous
or next observation for the same group /

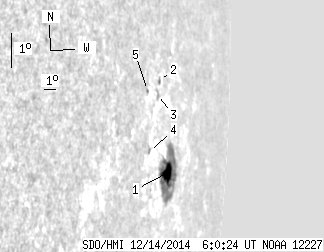

back to the solar disc SDO HMI 2014-12-14 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.93 | 67.63 | 23.75 | 135.71 | -4.20 | 1.34 | 75.61 | 265.87 | 0.9697 | 342.8 | 38.8 | |
| 0.00 | 1.96 | 0.00 | 3.56 | -1.49 | 359.92 | 74.19 | 268.68 | 0.9633 | -320.0 | -286.1 | |
| 0.00 | 2.98 | 0.00 | 5.37 | -1.91 | 359.75 | 74.01 | 268.24 | 0.9625 | -270.0 | -251.0 | |
| 0.00 | 1.28 | 0.00 | 2.22 | -3.60 | 359.16 | 73.43 | 266.48 | 0.9597 | 511.0 | 450.0 | |
| 0.00 | 1.19 | 0.00 | 2.01 | -1.80 | 358.68 | 72.94 | 268.36 | 0.9573 | -245.0 | -252.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
