SDO HMI 2014-12-14 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.67 | 65.00 | 24.14 | 134.73 | -4.12 | 1.21 | 76.02 | 265.95 | 0.9714 | 273.6 | 20.2 | |
|
previous
or next observation for the same group /

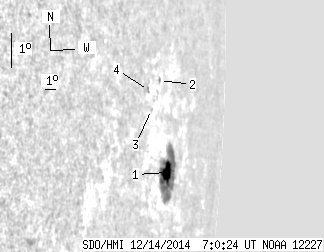

back to the solar disc SDO HMI 2014-12-14 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.67 | 62.01 | 24.14 | 129.30 | -4.22 | 1.29 | 76.10 | 265.85 | 0.9717 | 332.3 | 34.4 | |
| 0.00 | 1.45 | 0.00 | 2.73 | -1.52 | 359.94 | 74.75 | 268.65 | 0.9659 | -301.0 | -280.7 | |
| 0.00 | 0.26 | 0.00 | 0.46 | -2.38 | 359.15 | 73.96 | 267.75 | 0.9622 | 101.0 | 67.7 | |
| 0.00 | 1.28 | 0.00 | 2.24 | -1.83 | 358.75 | 73.57 | 268.33 | 0.9603 | -395.0 | -290.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
