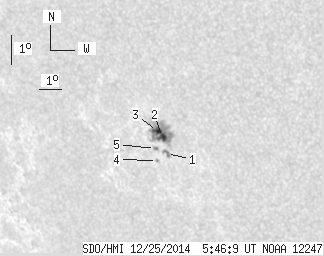

SDO HMI 2014-12-25 05:46:09 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 13 | 47 | 9 | 36 | -24.35 | 96.24 | -44.71 | 121.15 | 0.7512 | |
|
previous
or next day for the same group /
back to the solar disc SDO HMI 2014-12-25 05:46:09 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r |
| 2 | 4 | 1 | 3 | -24.85 | 96.29 | -44.66 | 121.80 | 0.7528 | |
| 5 | 40 | 4 | 30 | -24.34 | 96.34 | -44.61 | 121.18 | 0.7502 | |
| 5 | -2 | 3 | -2 | -24.14 | 96.20 | -44.75 | 120.87 | 0.7508 | |
| 0 | 1 | 0 | 1 | -25.06 | 95.78 | -45.17 | 121.85 | 0.7586 | |
| 1 | 2 | 1 | 2 | -24.68 | 95.86 | -45.08 | 121.41 | 0.7563 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
