group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
8076	149	903	87	536	28.01	109.15	27.10	312.99	0.5511	198.8	208.5

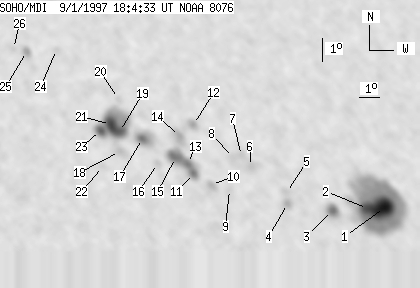

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 1997-09-01 18:04:33 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	54	421	33	258	26.37	114.60	32.55	305.62	0.5952	1389.5	498.5
2	-1	-1	-1	-1	26.38	113.73	31.67	306.23	0.5853	999999	999999
3	12	30	7	18	26.41	111.95	29.89	307.56	0.5652	1000.8	650.8
4	0	11	0	6	26.82	109.81	27.75	309.94	0.5441	841.0	729.0
5	0	7	0	4	27.28	109.88	27.83	310.59	0.5485	672.0	517.6
6	0	11	0	7	28.46	108.46	26.40	313.68	0.5427	891.0	706.1
7	0	12	0	7	28.94	108.09	26.03	314.76	0.5430	579.0	435.0
8	0	14	0	8	28.88	107.67	25.62	315.07	0.5381	579.0	426.7
9	0	6	0	4	27.55	107.14	25.08	313.57	0.5208	374.0	270.2
10	0	12	0	7	27.80	106.32	24.27	314.80	0.5143	-562.0	-522.6
11	9	82	5	47	28.30	105.57	23.51	316.38	0.5111	-561.9	85.2
12	3	21	1	12	30.37	106.08	24.02	318.86	0.5360	655.0	485.6
13	5	-11	3	-11	28.74	105.38	23.32	317.24	0.5133	1009.1	999999
14	0	26	0	15	29.89	105.26	23.21	319.06	0.5234	755.0	657.0
15	8	-11	5	-11	29.01	104.86	22.80	318.23	0.5108	-399.2	999999
16	0	9	0	5	28.80	103.94	21.88	318.97	0.4995	76.0	55.6
17	11	43	6	25	29.89	103.45	21.40	321.13	0.5061	-446.2	-207.2
18	0	17	0	10	29.38	102.23	20.18	321.91	0.4892	-851.0	-790.3
19	32	143	18	81	30.23	102.41	20.36	322.89	0.5001	-1218.9	-473.9
20	0	6	0	3	31.64	102.68	20.62	324.46	0.5180	-343.0	-235.4
21	-19	-19	-19	-19	30.54	102.05	19.99	323.78	0.5003	999999	999999
22	0	7	0	4	28.78	101.30	19.25	322.26	0.4739	-743.0	-661.7
23	12	-19	7	-19	30.31	101.51	19.46	324.14	0.4929	-1128.6	999999
24	0	7	0	4	33.87	100.12	18.07	330.41	0.5234	-559.0	-442.0
25	3	15	2	9	33.84	98.63	16.57	332.33	0.5123	-802.0	-677.9
26	0	3	0	2	33.99	98.02	15.96	333.33	0.5101	-536.0	-554.7

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
