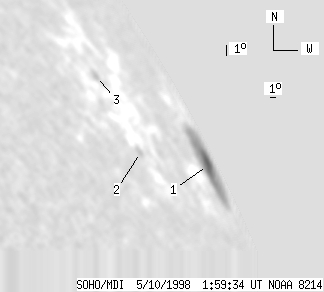

SOHO MDI 1998-05-10 01:59:34 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27 | 153 | 114 | 605 | 26.02 | 101.58 | 80.28 | 296.79 | 0.9920 | -138.6 | 59.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 1998-05-10 01:59:34 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27 | 140 | 114 | 582 | 25.96 | 102.04 | 80.74 | 296.65 | 0.9934 | -138.5 | 66.6 | |
| 0 | 6 | 0 | 11 | 25.86 | 90.41 | 69.12 | 298.36 | 0.9567 | -134.0 | -81.0 | |
| 0 | 7 | 0 | 12 | 29.22 | 89.54 | 68.25 | 301.97 | 0.9568 | -212.0 | -147.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
