SOHO MDI 1999-05-19 07:59:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80 | 657 | 42 | 344 | -20.33 | 118.79 | -2.77 | 173.13 | 0.3263 | 62.3 | 179.6 | |
|
previous
or next observation for the same group /

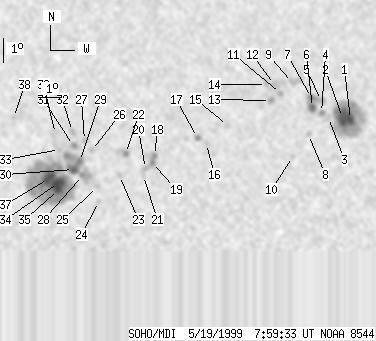

back to the solar disc SOHO MDI 1999-05-19 07:59:33 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10 | 149 | 5 | 77 | -18.98 | 126.75 | 5.18 | 196.53 | 0.3016 | -1692.3 | -702.5 | |
| 16 | -1 | 8 | -1 | -18.90 | 126.41 | 4.85 | 195.59 | 0.2988 | -1858.0 | 999999 | |
| 0 | 4 | 0 | 2 | -18.91 | 125.83 | 4.26 | 193.80 | 0.2963 | -812.0 | -741.4 | |
| 0 | 7 | 0 | 4 | -18.70 | 125.53 | 3.97 | 193.04 | 0.2919 | -813.0 | -706.6 | |
| 0 | 5 | 0 | 2 | -18.21 | 125.52 | 3.96 | 193.42 | 0.2838 | -962.0 | -939.6 | |
| 6 | 19 | 3 | 10 | -18.50 | 125.15 | 3.59 | 191.99 | 0.2872 | -1325.7 | -1243.2 | |
| 3 | -6 | 1 | -6 | -18.09 | 125.10 | 3.54 | 192.14 | 0.2803 | -1382.1 | 999999 | |
| 0 | 3 | 0 | 2 | -19.61 | 125.01 | 3.45 | 190.76 | 0.3048 | -473.0 | -264.5 | |
| 0 | 12 | 0 | 6 | -17.48 | 124.31 | 2.74 | 189.87 | 0.2676 | -1051.0 | -822.7 | |
| 0 | 3 | 0 | 2 | -20.52 | 124.36 | 2.79 | 188.29 | 0.3180 | -798.0 | -771.1 | |
| 0 | 5 | 0 | 2 | -17.93 | 123.82 | 2.25 | 187.89 | 0.2738 | -1171.0 | -889.6 | |
| 0 | 15 | 0 | 8 | -17.56 | 123.56 | 2.00 | 187.20 | 0.2672 | -1241.0 | -985.8 | |
| 0 | 5 | 0 | 3 | -18.21 | 123.41 | 1.84 | 186.35 | 0.2778 | -1045.0 | -917.0 | |
| 0 | 4 | 0 | 2 | -17.56 | 123.23 | 1.67 | 186.02 | 0.2665 | -1083.0 | -922.4 | |
| 0 | 5 | 0 | 2 | -19.24 | 121.63 | 0.07 | 180.21 | 0.2933 | -1017.0 | -856.5 | |
| 0 | 3 | 0 | 2 | -19.98 | 120.75 | -0.81 | 177.49 | 0.3060 | -807.0 | -549.9 | |
| 0 | 6 | 0 | 3 | -19.73 | 120.38 | -1.19 | 176.29 | 0.3022 | -1197.0 | -948.7 | |
| 1 | 14 | 0 | 7 | -20.47 | 118.56 | -3.00 | 171.09 | 0.3178 | -1015.3 | -672.1 | |
| 2 | -18 | 1 | -18 | -20.76 | 118.47 | -3.09 | 170.99 | 0.3228 | -1043.8 | 999999 | |
| 0 | 5 | 0 | 3 | -21.01 | 118.17 | -3.39 | 170.27 | 0.3276 | -426.0 | -30.0 | |
| 0 | 2 | 0 | 1 | -21.30 | 118.08 | -3.48 | 170.17 | 0.3326 | 631.0 | 603.5 | |
| 2 | 10 | 1 | 5 | -20.39 | 117.35 | -4.21 | 167.52 | 0.3201 | -658.2 | -458.1 | |
| 0 | 4 | 0 | 2 | -21.30 | 117.07 | -4.49 | 167.39 | 0.3358 | 742.0 | 608.0 | |
| 0 | 3 | 0 | 2 | -22.38 | 116.14 | -5.42 | 165.75 | 0.3566 | 875.0 | 745.9 | |
| 0 | 4 | 0 | 2 | -21.76 | 116.12 | -5.44 | 165.22 | 0.3468 | 797.0 | 839.3 | |
| 0 | 5 | 0 | 2 | -20.26 | 115.92 | -5.64 | 163.40 | 0.3240 | 752.0 | 549.9 | |
| 0 | 4 | 0 | 2 | -19.85 | 115.64 | -5.92 | 162.21 | 0.3189 | 961.0 | 705.7 | |
| 2 | 21 | 1 | 11 | -21.29 | 115.50 | -6.06 | 163.22 | 0.3423 | 1298.3 | 895.6 | |
| 3 | 43 | 2 | 23 | -20.71 | 115.40 | -6.16 | 162.41 | 0.3337 | 1420.2 | 1381.0 | |
| 5 | -29 | 3 | -29 | -21.04 | 115.13 | -6.43 | 162.02 | 0.3402 | 1587.4 | 999999 | |
| 0 | 8 | 0 | 4 | -20.05 | 115.17 | -6.39 | 161.12 | 0.3245 | 1322.0 | 1107.1 | |
| 0 | 6 | 0 | 3 | -19.47 | 115.15 | -6.41 | 160.44 | 0.3156 | 1244.0 | 961.5 | |
| 0 | 3 | 0 | 2 | -20.21 | 114.58 | -6.99 | 159.70 | 0.3304 | 1048.0 | 922.4 | |
| 11 | 266 | 6 | 141 | -21.58 | 114.47 | -7.09 | 160.87 | 0.3520 | 1869.3 | 703.1 | |
| 7 | -34 | 4 | -34 | -21.87 | 114.45 | -7.11 | 161.13 | 0.3565 | 1470.4 | 999999 | |
| 0 | 10 | 0 | 5 | -19.55 | 114.44 | -7.12 | 158.55 | 0.3210 | 947.0 | 827.3 | |
| 12 | -34 | 7 | -34 | -21.41 | 114.05 | -7.51 | 159.67 | 0.3517 | 1754.0 | 999999 | |
| 0 | 4 | 0 | 2 | -18.89 | 112.70 | -8.86 | 153.05 | 0.3228 | 937.0 | 779.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
