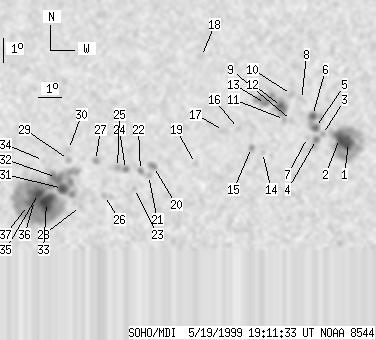

SOHO MDI 1999-05-19 19:11:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105 | 744 | 57 | 390 | -20.33 | 119.02 | 3.63 | 190.89 | 0.3309 | -49.0 | 147.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 1999-05-19 19:11:33 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14 | 136 | 8 | 72 | -19.27 | 127.07 | 11.68 | 213.01 | 0.3523 | -1527.5 | -596.8 | |
| 12 | -1 | 6 | -1 | -19.11 | 126.68 | 11.28 | 212.39 | 0.3466 | -1843.1 | 999999 | |
| 0 | 3 | 0 | 2 | -18.95 | 125.94 | 10.55 | 210.97 | 0.3381 | -1030.0 | -848.7 | |
| 3 | 13 | 2 | 7 | -19.15 | 125.70 | 10.31 | 210.07 | 0.3390 | -1240.1 | -846.8 | |
| 5 | 33 | 3 | 17 | -18.66 | 125.63 | 10.24 | 210.68 | 0.3315 | -1403.4 | -1055.0 | |
| 5 | -5 | 3 | -5 | -18.17 | 125.48 | 10.08 | 211.11 | 0.3233 | -1576.8 | 999999 | |
| 0 | 3 | 0 | 2 | -19.07 | 125.32 | 9.93 | 209.27 | 0.3347 | -826.0 | -642.9 | |
| 0 | 5 | 0 | 3 | -17.52 | 124.98 | 9.59 | 210.97 | 0.3100 | -683.0 | -730.4 | |
| 0 | 4 | 0 | 2 | -18.38 | 124.61 | 9.21 | 208.57 | 0.3191 | -701.0 | -737.6 | |
| 0 | 5 | 0 | 3 | -17.32 | 124.55 | 9.16 | 210.19 | 0.3035 | -1148.0 | -913.4 | |
| 0 | 5 | 0 | 2 | -18.34 | 124.31 | 8.92 | 207.86 | 0.3162 | -348.0 | -231.4 | |
| 8 | 22 | 4 | 12 | -17.81 | 124.16 | 8.77 | 208.30 | 0.3074 | -1421.6 | -1070.7 | |
| 3 | 37 | 2 | 19 | -17.69 | 123.48 | 8.09 | 206.64 | 0.3004 | -1171.2 | -1237.1 | |
| 0 | 3 | 0 | 1 | -19.70 | 123.46 | 8.06 | 203.69 | 0.3301 | 729.0 | 612.5 | |
| 0 | 5 | 0 | 3 | -19.50 | 122.98 | 7.59 | 202.71 | 0.3240 | 655.0 | 749.2 | |
| 0 | 3 | 0 | 2 | -18.72 | 122.40 | 7.01 | 202.11 | 0.3085 | 897.0 | 767.4 | |
| 0 | 7 | 0 | 3 | -18.81 | 121.78 | 6.39 | 200.22 | 0.3060 | -929.0 | -758.0 | |
| 0 | 2 | 0 | 1 | -15.80 | 120.77 | 5.38 | 200.99 | 0.2529 | -675.0 | -693.8 | |
| 0 | 4 | 0 | 2 | -20.17 | 120.65 | 5.26 | 195.59 | 0.3217 | -752.0 | -606.4 | |
| 3 | 9 | 1 | 5 | -20.30 | 118.89 | 3.50 | 190.45 | 0.3172 | -1021.2 | -881.0 | |
| 0 | 3 | 0 | 2 | -20.67 | 118.69 | 3.30 | 189.65 | 0.3227 | -733.0 | -597.3 | |
| 2 | 5 | 1 | 3 | -20.46 | 118.35 | 2.96 | 188.78 | 0.3184 | -1009.2 | -753.3 | |
| 0 | 4 | 0 | 2 | -21.21 | 118.11 | 2.72 | 187.74 | 0.3301 | 854.0 | 624.6 | |
| 2 | 6 | 1 | 3 | -20.42 | 117.72 | 2.33 | 186.94 | 0.3163 | -963.3 | -878.5 | |
| 0 | 10 | 0 | 5 | -20.34 | 117.38 | 1.99 | 185.98 | 0.3143 | -975.0 | -692.6 | |
| 0 | 10 | 0 | 5 | -21.50 | 116.85 | 1.46 | 184.10 | 0.3328 | 983.0 | 723.2 | |
| 0 | 5 | 0 | 3 | -20.05 | 116.46 | 1.07 | 183.27 | 0.3083 | -892.0 | -680.4 | |
| 0 | 3 | 0 | 1 | -21.96 | 115.84 | 0.45 | 181.22 | 0.3396 | 946.0 | 820.7 | |
| 0 | 4 | 0 | 2 | -20.01 | 115.33 | -0.06 | 179.81 | 0.3071 | 1054.0 | 815.8 | |
| 0 | 3 | 0 | 1 | -19.60 | 115.33 | -0.06 | 179.80 | 0.3002 | 915.0 | 882.0 | |
| 8 | 389 | 4 | 204 | -21.21 | 115.08 | -0.32 | 179.10 | 0.3271 | 1593.1 | 793.1 | |
| 7 | -31 | 4 | -31 | -20.76 | 114.83 | -0.57 | 178.33 | 0.3197 | 1849.8 | 999999 | |
| 21 | -31 | 11 | -31 | -21.80 | 114.40 | -0.99 | 177.25 | 0.3371 | 1741.4 | 999999 | |
| 0 | 3 | 0 | 1 | -20.05 | 114.28 | -1.11 | 176.61 | 0.3084 | 636.0 | 646.0 | |
| 5 | -31 | 3 | -31 | -21.42 | 114.06 | -1.33 | 176.25 | 0.3313 | 2021.3 | 999999 | |
| 3 | -31 | 2 | -31 | -21.71 | 113.89 | -1.50 | 175.83 | 0.3363 | 1440.9 | 999999 | |
| 4 | -31 | 2 | -31 | -21.92 | 113.59 | -1.80 | 175.06 | 0.3401 | 1024.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
