group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
8544	96	557	54	309	-20.82	118.68	18.27	221.19	0.4435	226.8	250.0

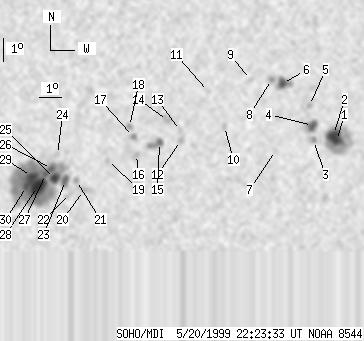

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 1999-05-20 22:23:33 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	20	93	12	54	-19.92	127.49	27.08	234.07	0.5306	-1550.5	-509.8
2	-1	-1	-1	-1	-19.67	127.30	26.89	234.31	0.5265	999999	999999
3	0	6	0	4	-19.93	126.41	26.00	233.04	0.5179	-1019.0	-850.0
4	8	20	5	11	-19.31	126.26	25.85	233.92	0.5112	-1294.4	-947.4
5	0	3	0	2	-18.50	125.99	25.58	235.06	0.5015	-931.0	-808.8
6	8	23	4	13	-17.61	124.62	24.21	235.27	0.4775	-1369.2	-842.9
7	0	3	0	2	-20.37	124.73	24.32	230.62	0.5015	-811.0	-704.0
8	0	5	0	3	-17.46	124.10	23.69	235.02	0.4697	-1391.0	-1006.6
9	0	3	0	2	-17.47	123.16	22.75	233.98	0.4580	-568.0	-459.1
10	0	5	0	3	-19.41	122.26	21.85	229.44	0.4640	889.0	657.7
11	0	4	0	2	-17.98	121.36	20.95	230.89	0.4401	-231.0	-267.8
12	0	5	0	3	-20.01	120.38	19.97	225.98	0.4480	-711.0	-720.6
13	0	4	0	2	-19.60	120.32	19.91	226.62	0.4433	-799.0	-729.7
14	0	10	0	5	-19.20	119.69	19.28	226.47	0.4320	-1234.0	-986.3
15	4	19	2	10	-20.11	119.45	19.04	224.54	0.4387	-1141.8	-931.1
16	0	6	0	3	-20.61	118.50	18.09	222.28	0.4338	-1058.0	-767.5
17	0	7	0	4	-19.87	118.28	17.87	223.20	0.4233	643.0	349.5
18	0	4	0	2	-19.46	118.06	17.65	223.57	0.4164	962.0	834.5
19	0	4	0	2	-20.88	117.25	16.84	219.90	0.4238	675.0	447.9
20	0	9	0	5	-22.14	116.34	15.93	216.44	0.4298	827.0	618.1
21	0	4	0	2	-21.72	115.99	15.58	216.47	0.4214	841.0	791.1
22	0	8	0	5	-22.27	115.78	15.37	215.31	0.4263	804.0	648.7
23	6	309	3	168	-21.73	115.50	15.09	215.63	0.4170	1066.4	825.8
24	0	3	0	2	-20.65	115.04	14.63	216.49	0.3992	847.0	751.2
25	7	-23	4	-23	-21.65	115.01	14.60	214.89	0.4115	1288.6	999999
26	4	-23	2	-23	-21.23	114.84	14.43	215.21	0.4046	1585.6	999999
27	1	-23	1	-23	-21.48	114.60	14.19	214.39	0.4057	1645.0	999999
28	25	-23	14	-23	-21.99	114.31	13.90	213.10	0.4095	1720.8	999999
29	10	-23	5	-23	-21.57	114.00	13.59	213.14	0.4015	2174.1	999999
30	3	-23	2	-23	-21.99	113.83	13.42	212.20	0.4054	1649.1	999999

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
