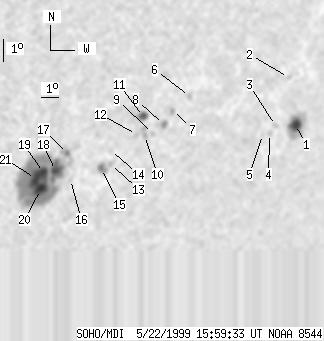

SOHO MDI 1999-05-22 15:59:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84 | 465 | 59 | 317 | -21.46 | 117.29 | 39.80 | 239.76 | 0.6890 | 495.1 | 378.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 1999-05-22 15:59:33 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16 | 60 | 13 | 49 | -19.71 | 127.85 | 50.35 | 246.35 | 0.7936 | -904.3 | -255.6 | |
| 0 | 3 | 0 | 2 | -17.79 | 126.62 | 49.13 | 248.40 | 0.7767 | -627.0 | -536.4 | |
| 0 | 4 | 0 | 3 | -19.78 | 126.58 | 49.09 | 245.90 | 0.7813 | -447.0 | -458.8 | |
| 0 | 4 | 0 | 3 | -20.12 | 126.34 | 48.84 | 245.41 | 0.7798 | -516.0 | -590.8 | |
| 0 | 2 | 0 | 1 | -20.17 | 125.91 | 48.42 | 245.21 | 0.7757 | -453.0 | -453.0 | |
| 0 | 4 | 0 | 3 | -18.70 | 120.98 | 43.48 | 245.42 | 0.7190 | -513.0 | -431.3 | |
| 0 | 7 | 0 | 5 | -19.30 | 120.20 | 42.70 | 244.33 | 0.7125 | -693.0 | -514.4 | |
| 2 | 9 | 2 | 6 | -19.89 | 119.88 | 42.38 | 243.41 | 0.7112 | -668.5 | -530.0 | |
| 0 | 3 | 0 | 2 | -20.27 | 119.38 | 41.89 | 242.69 | 0.7072 | -410.0 | -387.7 | |
| 0 | 10 | 0 | 7 | -20.36 | 118.96 | 41.47 | 242.38 | 0.7030 | -722.0 | -660.7 | |
| 6 | 15 | 4 | 10 | -19.58 | 118.65 | 41.16 | 243.31 | 0.6964 | -973.5 | -745.2 | |
| 0 | 3 | 0 | 2 | -20.33 | 118.50 | 41.01 | 242.22 | 0.6978 | -643.0 | -553.7 | |
| 0 | 4 | 0 | 3 | -21.60 | 117.48 | 39.98 | 240.01 | 0.6921 | 9.0 | 13.8 | |
| 0 | 3 | 0 | 2 | -21.02 | 117.29 | 39.79 | 240.71 | 0.6873 | 228.0 | 344.2 | |
| 4 | 15 | 3 | 10 | -21.78 | 117.04 | 39.54 | 239.56 | 0.6881 | 921.6 | 644.8 | |
| 0 | 3 | 0 | 2 | -22.27 | 115.51 | 38.01 | 238.08 | 0.6738 | 420.0 | 392.5 | |
| 3 | 23 | 2 | 15 | -21.19 | 115.01 | 37.52 | 239.30 | 0.6627 | 796.6 | 490.8 | |
| 8 | 293 | 5 | 192 | -21.91 | 114.59 | 37.09 | 238.06 | 0.6617 | 1155.9 | 737.4 | |
| 27 | -18 | 18 | -18 | -22.01 | 113.98 | 36.49 | 237.58 | 0.6554 | 1733.8 | 999999 | |
| 18 | -18 | 12 | -18 | -22.72 | 114.04 | 36.55 | 236.62 | 0.6601 | 1263.3 | 999999 | |
| -19 | -18 | -19 | -18 | -22.27 | 113.64 | 36.14 | 237.01 | 0.6530 | 999999 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
