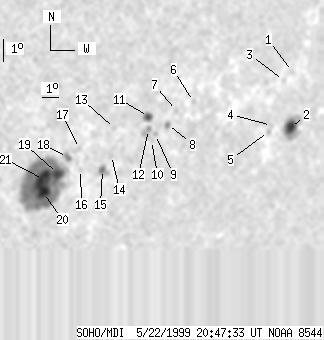

SOHO MDI 1999-05-22 20:47:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69 | 415 | 50 | 294 | -21.56 | 116.96 | 42.11 | 240.74 | 0.7144 | 481.6 | 396.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 1999-05-22 20:47:33 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 2 | 0 | 1 | -17.46 | 127.00 | 52.15 | 249.54 | 0.8062 | -420.0 | -282.9 | |
| 11 | 50 | 10 | 43 | -19.75 | 127.88 | 53.03 | 246.97 | 0.8192 | -817.2 | -240.4 | |
| 0 | 1 | 0 | 1 | -17.84 | 126.55 | 51.70 | 248.97 | 0.8026 | -473.0 | -379.3 | |
| 0 | 1 | 0 | 1 | -19.70 | 126.54 | 51.69 | 246.70 | 0.8066 | -551.0 | -473.3 | |
| 0 | 3 | 0 | 3 | -19.96 | 126.46 | 51.61 | 246.37 | 0.8064 | -658.0 | -551.7 | |
| 0 | 4 | 0 | 3 | -18.83 | 121.21 | 46.36 | 246.24 | 0.7507 | -461.0 | -336.9 | |
| 0 | 4 | 0 | 3 | -19.22 | 120.33 | 45.48 | 245.43 | 0.7425 | -740.0 | -565.9 | |
| 0 | 5 | 0 | 3 | -19.81 | 120.00 | 45.15 | 244.55 | 0.7410 | -690.0 | -461.6 | |
| 0 | 3 | 0 | 2 | -20.24 | 119.45 | 44.60 | 243.79 | 0.7366 | -730.0 | -637.1 | |
| 0 | 2 | 0 | 1 | -20.49 | 119.30 | 44.45 | 243.41 | 0.7359 | -370.0 | -353.2 | |
| 5 | 11 | 4 | 8 | -19.51 | 118.78 | 43.93 | 244.50 | 0.7268 | -987.1 | -693.6 | |
| 0 | 9 | 0 | 7 | -20.04 | 118.96 | 44.11 | 243.87 | 0.7307 | -649.0 | -706.1 | |
| 0 | 3 | 0 | 2 | -20.04 | 117.01 | 42.16 | 243.09 | 0.7094 | -444.0 | -367.1 | |
| 0 | 4 | 0 | 3 | -21.16 | 117.22 | 42.37 | 241.68 | 0.7162 | 428.0 | 307.2 | |
| 4 | 13 | 3 | 9 | -21.76 | 116.92 | 42.07 | 240.77 | 0.7154 | 733.4 | 565.9 | |
| 0 | 2 | 0 | 1 | -21.78 | 115.68 | 40.83 | 240.16 | 0.7022 | 337.0 | 284.8 | |
| 0 | 6 | 0 | 4 | -20.91 | 115.33 | 40.48 | 241.17 | 0.6945 | 351.0 | 502.6 | |
| 3 | 8 | 2 | 6 | -21.29 | 114.79 | 39.94 | 240.39 | 0.6903 | 823.2 | 724.9 | |
| 10 | 284 | 7 | 193 | -21.97 | 114.46 | 39.61 | 239.31 | 0.6899 | 1039.7 | 696.5 | |
| 13 | -19 | 9 | -19 | -22.78 | 113.97 | 39.12 | 237.96 | 0.6885 | 1297.9 | 999999 | |
| 23 | -19 | 15 | -19 | -22.24 | 113.78 | 38.93 | 238.60 | 0.6838 | 1680.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
