group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
46 | 259 | 46 | 257 | -21.79 | 116.35 | 58.05 | 245.47 | 0.8646 | 593.0 | 320.0 |
previous
or next observation for the same group /

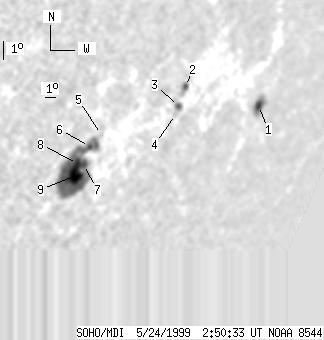

back to the solar disc SOHO MDI 1999-05-24 02:50:33 UT ![]() |
spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
6 | 27 | 9 | 39 | -19.55 | 127.86 | 69.56 | 249.81 | 0.9423 | -253.9 | -127.8 | |
2 | 14 | 2 | 15 | -18.96 | 119.95 | 61.65 | 249.48 | 0.8906 | -491.5 | -421.5 | |
3 | 9 | 3 | 10 | -19.80 | 119.87 | 61.58 | 248.54 | 0.8910 | -560.4 | -517.9 | |
0 | 2 | 0 | 2 | -20.13 | 119.83 | 61.54 | 248.16 | 0.8911 | -398.0 | -400.1 | |
0 | 1 | 0 | 1 | -21.10 | 114.38 | 56.09 | 246.02 | 0.8495 | 436.0 | 337.7 | |
3 | 206 | 3 | 190 | -21.62 | 113.77 | 55.48 | 245.28 | 0.8454 | 845.3 | 511.0 | |
3 | -6 | 3 | -6 | -22.38 | 113.77 | 55.48 | 244.40 | 0.8469 | 796.8 | 999999 | |
7 | -6 | 6 | -6 | -22.35 | 113.30 | 55.01 | 244.32 | 0.8429 | 1142.4 | 999999 | |
22 | -6 | 20 | -6 | -22.85 | 113.46 | 55.16 | 243.77 | 0.8452 | 1079.6 | 999999 |
Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
B | - Heliographic latitude B; positive: North, negative: South | |
L | - Heliographic longitude L | |
LCM | - Longitudinal distance from the Sun's central meridian | |
Pos. angle | - Position angle | |
r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. |
