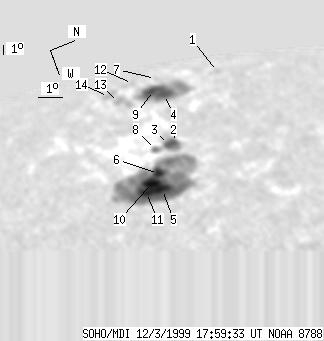

SOHO MDI 1999-12-03 17:59:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104 | 594 | 183 | 966 | 10.40 | 308.43 | -71.94 | 79.18 | 0.9481 | 10.8 | 53.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 1999-12-03 17:59:33 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 16 | 13.67 | 299.39 | -80.98 | 76.25 | 0.9887 | 217.0 | 173.7 | |
| 5 | 44 | 8 | 66 | 11.18 | 309.88 | -70.49 | 78.34 | 0.9457 | -638.9 | -322.3 | |
| 5 | -2 | 8 | -2 | 10.93 | 309.99 | -70.38 | 78.59 | 0.9450 | -451.5 | 999999 | |
| 19 | 108 | 44 | 267 | 11.42 | 302.68 | -77.69 | 78.43 | 0.9785 | -466.5 | -174.9 | |
| 13 | 391 | 16 | 490 | 10.12 | 314.58 | -65.79 | 79.15 | 0.9159 | 968.1 | 211.1 | |
| 12 | -5 | 15 | -5 | 10.19 | 312.93 | -67.44 | 79.20 | 0.9270 | 187.9 | 999999 | |
| 0 | 2 | 0 | 7 | 11.29 | 298.77 | -81.60 | 78.67 | 0.9901 | 263.0 | 226.3 | |
| 1 | -2 | 2 | -2 | 10.39 | 310.28 | -70.09 | 79.15 | 0.9432 | -163.8 | 999999 | |
| 22 | -4 | 57 | -4 | 11.07 | 301.52 | -78.85 | 78.82 | 0.9824 | -163.3 | 999999 | |
| 16 | -5 | 20 | -5 | 9.80 | 313.79 | -66.58 | 79.56 | 0.9212 | 415.8 | 999999 | |
| 11 | -5 | 13 | -5 | 9.50 | 314.55 | -65.82 | 79.83 | 0.9159 | 1083.4 | 999999 | |
| 0 | 11 | 0 | 36 | 10.38 | 299.01 | -81.36 | 79.58 | 0.9895 | 159.0 | 228.7 | |
| 0 | 21 | 0 | 51 | 9.63 | 302.57 | -77.80 | 80.26 | 0.9787 | -273.0 | -292.0 | |
| 0 | 12 | 0 | 33 | 9.34 | 300.97 | -79.40 | 80.60 | 0.9840 | -162.0 | -30.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
