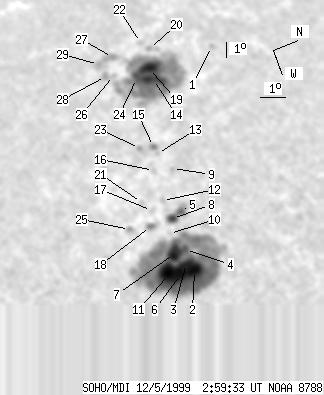

SOHO MDI 1999-12-05 02:59:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 168 | 1123 | 140 | 959 | 10.24 | 308.53 | -53.73 | 77.52 | 0.8094 | 423.3 | 80.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 1999-12-05 02:59:33 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 3 | 13.78 | 300.33 | -61.93 | 74.63 | 0.8907 | -83.0 | -14.3 | |
| 21 | 618 | 15 | 458 | 10.10 | 315.24 | -47.02 | 76.62 | 0.7427 | 1436.8 | 489.6 | |
| 30 | -2 | 23 | -2 | 9.90 | 314.74 | -47.52 | 76.98 | 0.7481 | 1330.2 | 999999 | |
| 5 | -2 | 4 | -2 | 10.06 | 313.93 | -48.33 | 76.94 | 0.7574 | 556.7 | 999999 | |
| 4 | 32 | 3 | 25 | 10.39 | 311.61 | -50.65 | 76.93 | 0.7832 | 418.1 | 330.8 | |
| -3 | -2 | -3 | -2 | 9.53 | 315.28 | -46.98 | 77.37 | 0.7413 | 999999 | 999999 | |
| 20 | -2 | 15 | -2 | 9.60 | 314.01 | -48.25 | 77.52 | 0.7558 | 804.3 | 999999 | |
| 6 | -5 | 5 | -5 | 10.01 | 311.92 | -50.34 | 77.36 | 0.7793 | 752.7 | 999999 | |
| 0 | 3 | 0 | 3 | 10.69 | 308.80 | -53.46 | 77.03 | 0.8124 | -303.0 | -197.3 | |
| 0 | 3 | 0 | 2 | 9.69 | 312.77 | -49.49 | 77.62 | 0.7696 | 242.0 | 280.8 | |
| 30 | -2 | 22 | -2 | 9.10 | 315.11 | -47.15 | 77.99 | 0.7425 | 1396.4 | 999999 | |
| 0 | 5 | 0 | 4 | 9.89 | 310.68 | -51.58 | 77.72 | 0.7922 | 414.0 | 273.9 | |
| 0 | 3 | 0 | 3 | 10.34 | 307.60 | -54.66 | 77.62 | 0.8238 | 223.0 | 181.8 | |
| 19 | 361 | 19 | 370 | 11.20 | 302.20 | -60.06 | 77.31 | 0.8733 | -950.3 | -426.7 | |
| 1 | 8 | 1 | 7 | 10.29 | 307.07 | -55.19 | 77.76 | 0.8289 | 261.7 | 204.9 | |
| 0 | 4 | 0 | 3 | 9.97 | 308.66 | -53.60 | 77.93 | 0.8130 | 362.0 | 266.6 | |
| 0 | 4 | 0 | 3 | 9.35 | 311.14 | -51.12 | 78.32 | 0.7867 | 375.0 | 376.0 | |
| 2 | 9 | 1 | 7 | 9.10 | 312.09 | -50.17 | 78.50 | 0.7762 | 616.8 | 497.2 | |
| 19 | -14 | 20 | -14 | 11.21 | 301.26 | -61.00 | 77.42 | 0.8810 | -483.8 | 999999 | |
| 0 | 12 | 0 | 13 | 11.48 | 299.60 | -62.66 | 77.29 | 0.8943 | 133.0 | 120.7 | |
| 0 | 3 | 0 | 3 | 9.10 | 310.50 | -51.76 | 78.74 | 0.7931 | 295.0 | 327.5 | |
| 0 | 5 | 0 | 5 | 11.23 | 298.93 | -63.33 | 77.64 | 0.8991 | 206.0 | 259.3 | |
| 0 | 8 | 0 | 7 | 9.76 | 306.99 | -55.27 | 78.41 | 0.8290 | 238.0 | 144.8 | |
| 11 | -14 | 12 | -14 | 10.60 | 301.85 | -60.41 | 78.05 | 0.8757 | -878.0 | 999999 | |
| 0 | 5 | 0 | 4 | 8.30 | 311.95 | -50.31 | 79.55 | 0.7767 | -521.0 | -388.6 | |
| 0 | 3 | 0 | 3 | 9.80 | 301.23 | -61.03 | 79.02 | 0.8802 | -417.0 | -449.1 | |
| 0 | 16 | 0 | 18 | 10.00 | 299.74 | -62.52 | 78.93 | 0.8922 | 323.0 | 260.3 | |
| 0 | 8 | 0 | 8 | 9.49 | 301.17 | -61.09 | 79.37 | 0.8805 | -341.0 | -372.3 | |
| 0 | 10 | 0 | 10 | 9.40 | 300.07 | -62.19 | 79.58 | 0.8892 | 93.0 | -23.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
