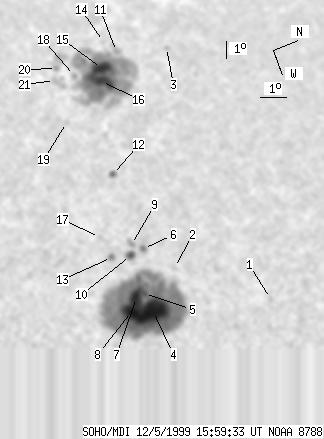

SOHO MDI 1999-12-05 15:59:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 177 | 1166 | 125 | 856 | 10.26 | 308.72 | -46.40 | 76.06 | 0.7310 | 677.6 | 67.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 1999-12-05 15:59:33 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | 14.28 | 316.26 | -38.87 | 68.22 | 0.6572 | 608.0 | 503.1 | |
| 0 | 1 | 0 | 1 | 11.19 | 313.59 | -41.53 | 73.68 | 0.6801 | -150.0 | -80.9 | |
| 0 | 3 | 0 | 3 | 13.93 | 300.61 | -54.52 | 73.24 | 0.8276 | -294.0 | -169.0 | |
| 67 | 644 | 44 | 421 | 9.82 | 315.54 | -39.58 | 75.12 | 0.6520 | 1796.2 | 559.7 | |
| 4 | -4 | 3 | -4 | 9.74 | 314.53 | -40.59 | 75.53 | 0.6647 | 691.9 | 999999 | |
| 3 | 9 | 2 | 6 | 10.32 | 312.22 | -42.90 | 75.31 | 0.6948 | 641.6 | 353.2 | |
| 23 | -4 | 15 | -4 | 9.39 | 314.63 | -40.50 | 76.02 | 0.6626 | 1040.1 | 999999 | |
| 24 | -4 | 16 | -4 | 9.02 | 315.25 | -39.87 | 76.41 | 0.6537 | 1671.1 | 999999 | |
| 0 | 8 | 0 | 5 | 9.94 | 311.86 | -43.26 | 75.94 | 0.6983 | 562.0 | 407.8 | |
| 6 | 13 | 4 | 9 | 9.75 | 312.42 | -42.71 | 76.07 | 0.6911 | 846.3 | 593.0 | |
| 0 | 10 | 0 | 9 | 12.04 | 300.27 | -54.86 | 75.57 | 0.8280 | 197.0 | 65.3 | |
| 3 | 7 | 2 | 6 | 10.20 | 307.81 | -47.32 | 76.48 | 0.7465 | 344.3 | 253.9 | |
| 2 | 8 | 1 | 5 | 9.03 | 312.27 | -42.86 | 77.13 | 0.6914 | 787.8 | 670.7 | |
| 0 | 1 | 0 | 1 | 11.70 | 299.40 | -55.72 | 76.11 | 0.8357 | 184.0 | 176.0 | |
| 20 | 399 | 17 | 338 | 11.26 | 301.20 | -53.92 | 76.36 | 0.8179 | -711.5 | -478.6 | |
| 25 | -15 | 21 | -15 | 11.08 | 302.05 | -53.07 | 76.43 | 0.8093 | -1185.0 | 999999 | |
| 0 | 3 | 0 | 2 | 8.87 | 311.06 | -44.06 | 77.62 | 0.7058 | 361.0 | 376.1 | |
| 0 | 5 | 0 | 4 | 10.18 | 301.28 | -53.84 | 77.66 | 0.8158 | -556.0 | -624.1 | |
| 0 | 3 | 0 | 3 | 9.24 | 304.12 | -51.00 | 78.39 | 0.7855 | -683.0 | -566.7 | |
| 0 | 30 | 0 | 26 | 9.62 | 300.55 | -54.57 | 78.44 | 0.8223 | -310.0 | 3.1 | |
| 0 | 18 | 0 | 15 | 9.38 | 301.31 | -53.82 | 78.63 | 0.8146 | -380.0 | -460.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
